The Edon TB200A Welding Machine is a compact electric arc welding machine designed for metal fabrication, steel repairs, gate making, grill installation and general workshop welding. It uses inverter technology to provide adjustable direct-current (DC) welding output for compatible stick electrodes.

The machine is suitable for welders, metal fabricators, technicians, mechanics and contractors who need a portable welding machine for light to medium fabrication work.

The Edon TB200A is commonly associated with the Edon TB-200 series, which is advertised with IGBT inverter technology, adjustable welding current of 20–200A, single-phase 220–240V input and fan cooling.

Its compact design makes it convenient for workshops and mobile welding jobs where a larger transformer welding machine would be difficult to transport.

Edon TB200A Welding Machine Specifications

The following specifications are based on published Edon TB-200 series information. The exact TB200A model label should be checked because some sellers use TB-200 and TB200A interchangeably.

Published TB-200 specifications are inconsistent. For example, power consumption is listed as 3.9kW in one technical catalogue, while some sellers advertise much higher input figures. Machine weight is also reported differently. Confirm the actual TB200A nameplate, rated input current and duty cycle before purchase.

Edon TB200A Welding Machine Price in Kenya 2026

Reference prices from Kenyan listings available in October 2026. The TB-series listing may represent the starting price for the range. These are not confirmed prices at Peter Machines and Spares.Prices depend on the machine version, included cables, accessories, warranty and supplier.

Main Features of Edon TB200A Welding Machine

1. IGBT Inverter Welding Technology

The Edon TB200A belongs to a range of welding machines advertised with IGBT inverter technology.

IGBT stands for Insulated Gate Bipolar Transistor. This technology helps control electrical power efficiently and allows welding machines to be smaller than many traditional transformer-based machines.

For welders, this can offer a more portable machine with adjustable output.

2. Adjustable Welding Current

The Edon TB-200 series is advertised with an adjustable output current of approximately 20–200A.

This allows the operator to select welding current according to electrode diameter, material thickness, welding position and joint design.

The correct setting is important because too little current can cause poor fusion, while excessive current may burn through thinner materials.

3. MMA Stick Welding

The Edon TB200A is primarily an MMA welding machine.

MMA welding uses a flux-coated electrode that melts to form the weld. The electrode coating produces shielding gases and slag that help protect the weld pool.

This process is widely used in Kenya because it is practical for metal fabrication, outdoor repair work and construction maintenance.

4. Portable Workshop Design

The TB-200 series is designed to be more compact than many older transformer welding machines.

This makes it useful for welders who move between workshops, construction sites and customer locations.

However, the machine must still be protected from rain, dust and mechanical damage.

5. Fan Cooling System

The Edon TB200A uses a cooling system to help manage heat generated during welding.

Fan cooling is listed across the TB-200 series.

The cooling openings should remain clear during use.

Blocking airflow or operating beyond the rated duty cycle can cause overheating and shutdown.

6. Hot Start Function

Some Edon TB-200 listings advertise a Hot Start feature.

Hot Start temporarily increases current during arc initiation to help strike the arc.

This can make starting a weld easier, particularly when using compatible stick electrodes.

Confirm this feature on the exact TB200A version before advertising it as standard.

7. Anti-Stick Function

Anti-Stick is advertised on selected TB-200 models.

It helps reduce welding current when the electrode sticks to the workpiece, making the electrode easier to release.

This is useful for beginner welders and during low-current welding.

8. Arc Force Control

Arc Force is designed to help maintain arc stability during stick welding.

It may increase current briefly when the arc becomes too short.

This can reduce sticking and improve control in certain welding conditions.

9. Thermal Protection

Selected Edon TB-200 machines are advertised with overheating and overload protection.

Thermal protection can interrupt welding when internal temperatures become excessive.

It does not replace proper duty-cycle management or safe electrical installation.

Applications of Edon TB200A Welding Machine in Kenya

Gate and Window Grill Fabrication

The Edon TB200A can be used for welding mild steel frames, grills and other common metalwork.

It is useful for fabricators who make security doors, window grills, gates and steel furniture.

The welder should select the correct electrode diameter and current according to the steel thickness.

Agricultural Equipment Repairs

Farm workshops can use the Edon TB200A for suitable repairs on steel frames, brackets and agricultural equipment.

For load-bearing or safety-critical parts, welding should follow an approved repair procedure.

Construction and Site Maintenance

The portable design makes the machine convenient for general metal repairs at construction sites.

For structural steel welding, the machine must meet the approved welding procedure and required duty cycle. A 200A label alone does not establish suitability for certified structural work.

Recommended Welding Electrodes for Edon TB200A

The TB-200 series is commonly advertised for MMA electrodes from approximately 1.6mm to 4.0mm.

Electrode Diameter	Typical Starting Current Range	Common Application
1.6mm	25–45A	Thin steel and light repairs
2.0mm	40–70A	Light fabrication
2.5mm	60–100A	Gates, grills and general steelwork
3.2mm	90–140A	Medium steel fabrication
4.0mm	130–190A	Heavier steel joints, where machine capacity permits

These are approximate starting ranges, not fixed machine settings. Actual current depends on electrode type, welding position and manufacturer instructions.

For everyday fabrication, 2.5mm and 3.2mm electrodes are practical choices for many welding jobs.

Edon TB200A vs Traditional Transformer Welding Machine

The Edon TB200A is a practical choice for users who want a compact welding machine that is easy to move between work areas.

Understanding the Edon TB200A Duty Cycle

Duty cycle tells you how long a welding machine can operate at a stated current within a specified time period.

For example, a 60% duty cycle at 200A, if verified at the applicable test temperature, means the machine can weld for approximately six minutes in a ten-minute cycle before requiring cooling time.

Published TB-200 references list a 60% duty cycle, but the exact test conditions and rating should be checked on the supplied machine.

This is important for workshops that perform long welding runs.

For frequent continuous welding, choose a machine with a duty-cycle rating that matches the work.

How to Choose the Best Edon TB200A Welding Machine

Before buying an Edon TB200A in Kenya, check the following:

• Model authenticity: Confirm that the nameplate shows the exact model you are purchasing.

• Rated output: Verify the welding current and duty cycle.

• Input requirements: Check the supply voltage, input current, circuit breaker and cable requirements.

• Electrode compatibility: Choose a machine that supports the electrodes you normally use.

• Accessories: Confirm the electrode holder, work return clamp and cable lengths.

• Protection features: Check thermal protection and ventilation.

• Warranty: Ask about the warranty and repair arrangements.

• Spare parts: Confirm availability of compatible cables, clamps and connectors.

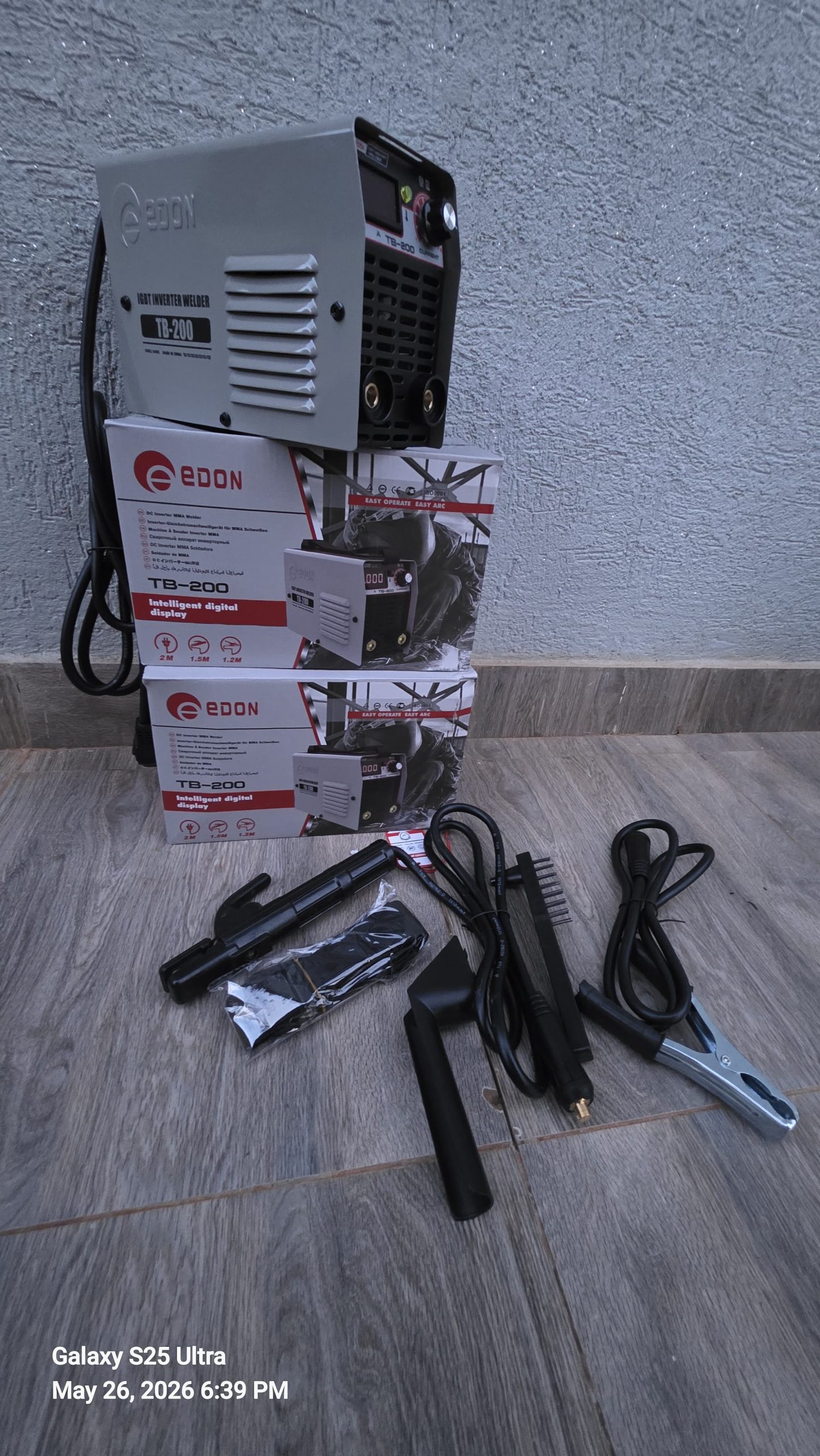

What Comes with the Edon TB200A?

Common TB-200 packages are advertised with the following:

Package contents vary by seller.

Welding helmets, gloves, protective clothing and electrodes may need to be purchased separately.

How to Use Edon TB200A Welding Machine

1. Place the machine on a dry, stable surface with adequate ventilation.

2. Check that the electrical supply meets the nameplate requirements.

3. Inspect the welding cables, connectors and electrode holder.

4. Connect the work return clamp to clean metal near the welding area.

5. Select the correct electrode and polarity according to its manufacturer.

6. Adjust the welding current to suit the electrode and material.

7. Wear an appropriate welding helmet, gloves and protective clothing.

8. Strike the arc and maintain the correct arc length.

9. Move the electrode steadily along the joint.

10. Stop welding if the machine overheats or displays a fault.

11. Allow the weld to cool before handling or cleaning.

12. Switch off and disconnect the machine after use.

Welding produces harmful fumes, intense ultraviolet radiation, hot metal and electrical hazards. Use suitable ventilation, fire prevention measures and electrical protection.

Edon TB200A Maintenance Tips

Regular maintenance can improve the machine’s reliability.

• Remove dust from the external ventilation openings.

• Inspect the power cable for damage.

• Check welding cable connections for looseness.

• Keep the machine dry.

• Avoid blocking the cooling fan.

• Replace damaged electrode holders and clamps.

• Follow the rated duty cycle.

• Store the machine away from rain and moisture.

• Have internal electrical repairs performed by a qualified technician.

Never open the machine immediately after disconnecting power. Internal capacitors may retain dangerous voltage.

Common Edon TB200A Welding Problems and Solutions

Where to Buy Edon TB200A Welding Machine in Kenya

Customers looking for the Edon TB200A welding machine in Nairobi can contact Peter Machines and Spares for current prices and availability.

Supplier: Peter Machines and Spares

Call/WhatsApp: 0719276999

Website: petermachinesandspares.co.ke

The business supplies welding machines, power tools, generators, water pumps and related equipment to customers in Kenya.

Confirm the exact TB200A model, accessories, warranty and delivery arrangements before placing an order.

Frequently Asked Questions

What is Edon TB200A welding machine?

The Edon TB200A is a compact inverter arc welding machine intended for MMA stick welding applications such as metal fabrication and workshop repairs.

How much is Edon TB200A welding machine in Kenya?

A Kenyan retailer advertises the Edon TB200A at KSh 6,999. Related Edon TB-200 listings range from approximately KSh 5,499 to KSh 7,986.

How many amps is Edon TB200A?

The related TB-200 series is advertised with adjustable welding current from approximately 20A to 200A.

Can Edon TB200A weld stainless steel?

Yes, it can weld suitable stainless steel using compatible MMA stainless steel electrodes and the correct welding procedure.

Can Edon TB200A weld aluminium?

Aluminium MMA electrodes exist, but aluminium stick welding is specialised and difficult. Do not assume the TB200A is suitable for routine aluminium welding without verifying the process and electrode requirements.

Can Edon TB200A use 3.2mm electrodes?

Yes. The TB-200 series is commonly advertised as compatible with 3.2mm MMA electrodes, subject to the machine’s actual output and duty cycle.

Can Edon TB200A use 4.0mm electrodes?

Some TB-200 references list compatibility with 4.0mm electrodes. Sustained use at higher current depends on the machine’s verified rating and electrical supply.

Does Edon TB200A use single-phase electricity?

Yes. The related TB-200 models are advertised for single-phase 220–240V AC input.

Is Edon TB200A suitable for gate fabrication?

Yes. It is useful for common mild steel fabrication tasks such as gates, grills, frames and metal furniture.

Does Edon TB200A have Hot Start and Anti-Stick?

These functions are advertised on selected TB-200 versions. Confirm their availability on the exact TB200A unit.

Can Edon TB200A run on a generator?

It may be possible with a suitably rated generator that provides stable voltage and adequate starting and operating capacity. Check the welder’s actual input requirements before selecting a generator.

Where can I buy Edon TB200A in Nairobi?

Contact Peter Machines and Spares on 0719276999 for the current Edon TB200A welding machine price, availability and ordering information.
