Description
A 500 kg Electric Hoist is a powerful lifting machine designed to safely raise and lower heavy loads in workshops, warehouses, construction sites, garages, factories and farms. Powered by a high-performance electric motor, the hoist uses a durable steel wire rope and lifting hook to handle materials efficiently while reducing manual labour.
Most 500 kg electric hoists are supplied with a single-line and double-line lifting configuration. In single-line operation, the hoist typically lifts 250 kg, while using the supplied pulley block increases the lifting capacity to 500 kg. This flexible design makes it suitable for a wide range of lifting applications.
The compact design, simple controls and reliable braking system make the electric hoist an excellent solution for both commercial and industrial lifting operations.
Quick Specifications
| Feature | Typical Specification |
|---|---|
| Product Name | Electric Hoist 500 kg |
| Rated Capacity | 250 kg (Single Line) / 500 kg (Double Line) |
| Motor Power | 900–1000 W |
| Power Supply | 220–240V AC, 50 Hz |
| Lifting Height | 12 m (Single Line), 6 m (Double Line) |
| Lifting Speed | 10 m/min (Single Line), 5 m/min (Double Line) |
| Wire Rope Diameter | Approximately 4–5 mm |
| Wire Rope Material | Galvanized Steel |
| Control Method | Wired Pendant Controller |
| Protection Class | IP54 (Model Dependent) |
| Duty Cycle | Intermittent Duty |
Main Features
Powerful Electric Motor
The high-efficiency copper-wound motor provides reliable lifting performance with low maintenance requirements.
Benefits include:
- Smooth operation
- Stable lifting speed
- High torque
- Long service life
- Energy-efficient performance
Many models feature thermal overload protection to help prevent overheating during extended use.
Dual Lifting Capacity
The supplied pulley block allows two lifting modes:
Single Line
- Capacity: 250 kg
- Maximum lifting height: 12 metres
- Faster lifting speed
Double Line
- Capacity: 500 kg
- Maximum lifting height: 6 metres
- Greater lifting force
This gives users the flexibility to choose the most suitable configuration for each task.
High-Strength Steel Wire Rope
The galvanized steel cable provides:
- Excellent tensile strength
- Wear resistance
- Corrosion resistance
- Reliable lifting performance
Regular inspection of the wire rope is essential for safe operation.
Heavy-Duty Hook with Safety Latch
The forged steel lifting hook features a spring-loaded safety latch to help prevent accidental load release.
Electromagnetic Brake System
The built-in brake automatically holds the load when the control switch is released.
Advantages include:
- Increased operator safety
- Controlled lifting
- Stable load positioning
- Reduced risk of load movement
Wired Pendant Controller
The ergonomic control pendant allows users to:
- Raise loads
- Lower loads
- Stop instantly when required
The long control cable enables safe operation from a comfortable distance.
Durable Steel Housing
The powder-coated steel casing protects internal components from dust, impacts and corrosion, making the hoist suitable for demanding working environments.
Applications
A 500 kg electric hoist is ideal for:
Warehouses
Lifting:
- Boxes
- Pallets
- Equipment
- Spare parts
Workshops
Handling:
- Engines
- Gearboxes
- Electric motors
- Machine components
Construction Sites
Suitable for lifting:
- Building materials
- Cement bags
- Steel sections
- Roofing materials
Garages
Useful for:
- Engine removal
- Vehicle component handling
- Workshop maintenance
Farms
Ideal for:
- Feed bags
- Irrigation equipment
- Machinery parts
- Agricultural supplies
Manufacturing Plants
Assists in moving production materials and assembled components efficiently.
Advantages
- Powerful lifting performance
- Dual lifting capacity
- Compact design
- Easy installation
- Reliable braking system
- Strong steel wire rope
- Simple operation
- Durable construction
- Suitable for industrial and commercial use
- Low maintenance
Electric Hoist vs Manual Chain Block
| Feature | Electric Hoist | Manual Chain Block |
|---|---|---|
| Power Source | Electricity | Manual |
| Lifting Speed | Fast | Slower |
| Operator Effort | Minimal | High |
| Productivity | Excellent | Moderate |
| Best For | Frequent Lifting | Occasional Lifting |
Electric Hoist vs Lever Hoist
| Feature | Electric Hoist | Lever Hoist |
|---|---|---|
| Operation | Electric Motor | Manual Lever |
| Lifting Capacity | Moderate to High | Moderate |
| Speed | Faster | Slower |
| Ideal Use | Fixed Installations | Portable Lifting Jobs |
How to Use the Electric Hoist
Step 1
Install the hoist securely on a suitable beam or mounting bracket.
Step 2
Inspect the wire rope, hook and pulley before use.
Step 3
Connect the hoist to a suitable power supply.
Step 4
Attach the load securely to the hook.
Step 5
Lift the load slowly using the pendant controller.
Step 6
Move the load only if the hoist is part of a compatible trolley system.
Step 7
Lower the load carefully to the desired position.
Safety Tips
- Never exceed the rated lifting capacity.
- Inspect the wire rope before every use.
- Ensure the load is balanced.
- Do not stand beneath suspended loads.
- Keep the hook safety latch closed during lifting.
- Disconnect power before maintenance.
- Use only on structurally suitable mounting beams.
Maintenance
- Inspect the wire rope regularly for wear.
- Lubricate moving components where recommended.
- Check electrical cables for damage.
- Clean dust from the motor housing.
- Tighten mounting bolts periodically.
- Store indoors when not in use.
How to Choose the Best 500 kg Electric Hoist
Before purchasing, consider:
- Lifting capacity
- Motor power
- Lifting height
- Wire rope quality
- Brake system
- Duty cycle
- Beam compatibility
- Spare parts availability
- Warranty

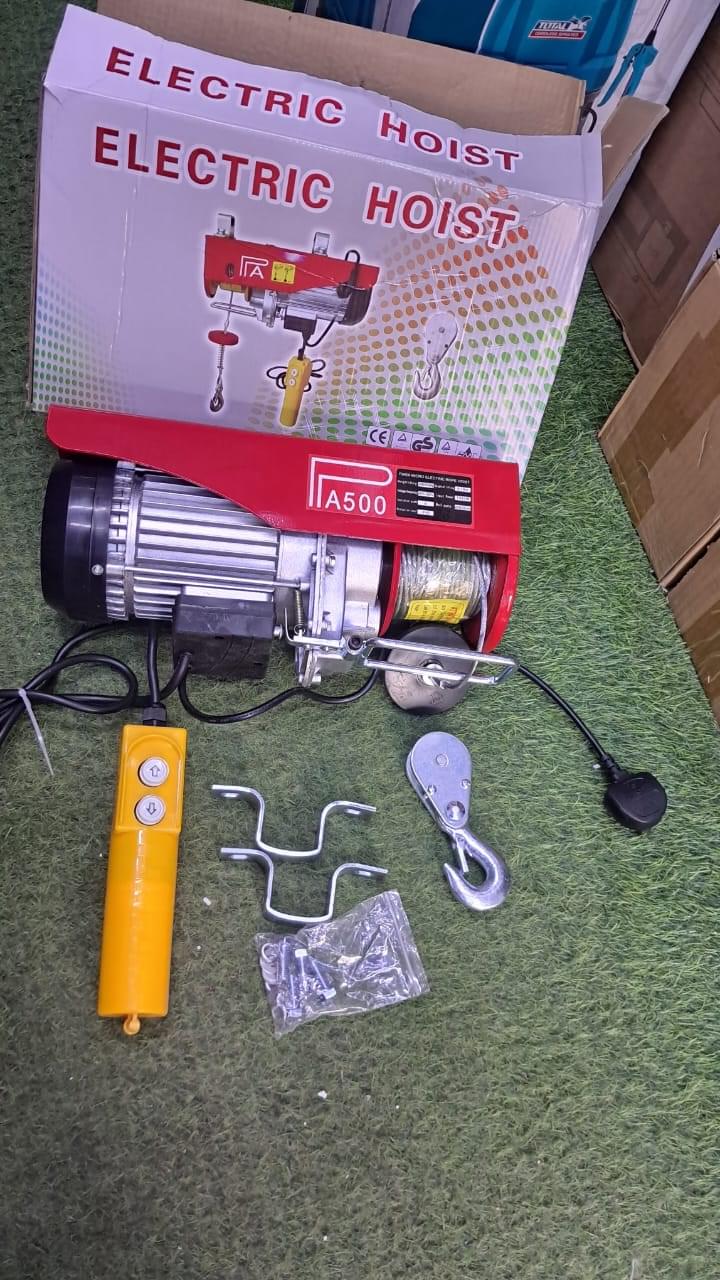

Package Contents
A standard package may include:
- 1 × 500 kg Electric Hoist
- Wired control pendant
- Pulley block
- Mounting brackets
- Lifting hook
- User manual
Package contents may vary depending on the manufacturer.
500 kg Electric Hoist Price in Kenya
Prices vary according to the motor power, lifting height, duty rating and overall build quality.
| Product | Estimated Price |
|---|---|
| Standard 500 kg Electric Hoist | KSh 18,000–28,000 |
| Heavy-Duty Workshop Hoist | KSh 28,000–40,000 |
| Industrial Electric Hoist | KSh 40,000–65,000 |
Premium models with higher-duty motors, improved weather protection and enhanced safety features are generally more expensive.
Why Buy a 500 kg Electric Hoist?
A 500 kg electric hoist is a practical lifting solution for businesses and professionals who need to move heavy materials safely and efficiently. Its powerful motor, dual lifting capacity, automatic brake and durable steel wire rope make it ideal for workshops, warehouses, garages, farms and construction sites.
By reducing manual lifting effort, improving workplace safety and increasing productivity, this hoist is an excellent investment for both commercial and industrial applications.
Frequently Asked Questions
What is the lifting capacity of a 500 kg electric hoist?
Most models lift 250 kg in single-line mode and 500 kg in double-line mode using the supplied pulley block.
What power supply does it require?
Most 500 kg electric hoists operate on a 220–240V AC, 50 Hz single-phase power supply.
How high can it lift?
Typical lifting heights are 12 metres in single-line mode and 6 metres in double-line mode, depending on the model.
Can it be installed in a garage?
Yes. It can be mounted to a suitable steel beam or hoist bracket in garages, workshops and warehouses.
Does it include a remote control?
Most models include a wired pendant control for raising and lowering loads safely. Some premium models may offer wireless control as an optional feature.
Is the wire rope replaceable?
Yes. When worn or damaged, the wire rope should be replaced with the correct size and specification recommended by the manufacturer.
How often should the hoist be inspected?
Inspect the wire rope, hook, brake system, electrical cable and mounting hardware before each use and carry out periodic maintenance according to the manufacturer’s guidelines.
What is the price of a 500 kg electric hoist in Kenya?
A quality 500 kg electric hoist typically costs between KSh 18,000 and KSh 40,000, while heavy-duty industrial models can range from KSh 40,000 to KSh 65,000, depending on the motor power, lifting height and features.
