Description

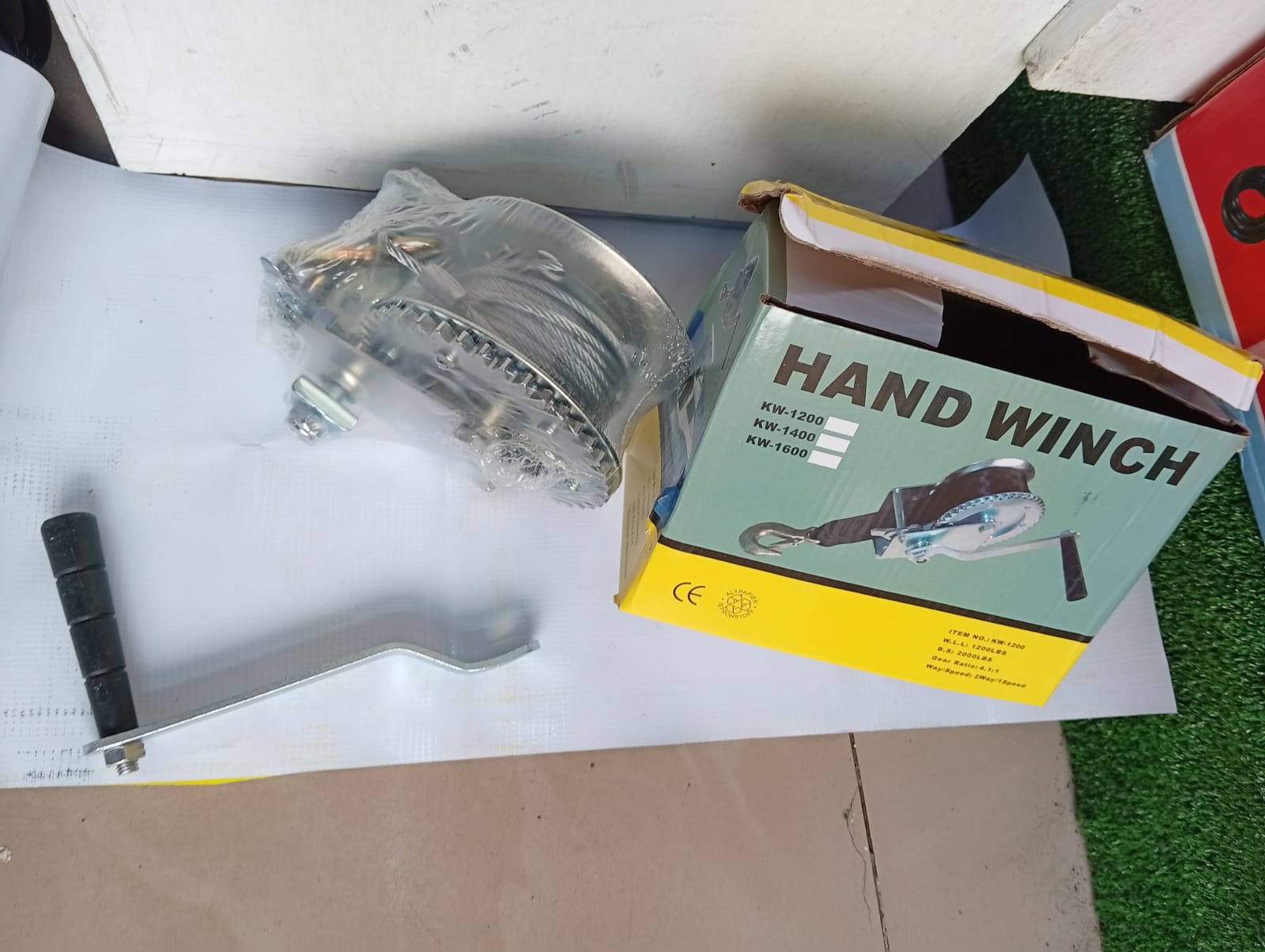

A hand winch is a manually operated mechanical device designed for pulling, lifting and positioning heavy loads using a steel wire rope or polyester strap. It is widely used on boat trailers, car trailers, workshops, warehouses, construction sites, farms and garages for moving equipment safely and efficiently.
Hand winches use a gear-driven ratchet mechanism that provides controlled pulling power while preventing the load from rolling backward. They are easy to operate, require no electricity or fuel and are suitable for indoor and outdoor applications.
The 800 lbs and 1200 lbs models are among the most popular manual winches because they offer a balance between lifting capacity, portability and affordability.
Quick Specifications
| Feature | 800 lbs Model | 1200 lbs Model |
|---|---|---|
| Load Capacity | 800 lbs (363 kg) | 1200 lbs (544 kg) |
| Operation | Manual | Manual |
| Drive System | Single-Speed Gear | Single-Speed Gear |
| Gear Mechanism | Ratchet with Lock | Ratchet with Lock |
| Cable Type | Steel Wire Rope or Polyester Strap | Steel Wire Rope or Polyester Strap |
| Hook | Forged Safety Hook | Forged Safety Hook |
| Frame Material | Heavy-Duty Steel | Heavy-Duty Steel |
| Finish | Powder Coated | Powder Coated |
| Mounting | Bolt-On Base | Bolt-On Base |
Main Features
Heavy-Duty Steel Construction
The hand winch is manufactured from heavy-duty steel to provide:
- High strength
- Long service life
- Excellent durability
- Corrosion resistance
The powder-coated finish protects the frame against rust and harsh outdoor conditions.
Strong Pulling Capacity
The 800 lbs model is suitable for pulling loads up to 363 kg, while the 1200 lbs model can pull up to 544 kg under ideal operating conditions.
These capacities make them suitable for:
- Boat trailers
- Utility trailers
- ATVs
- Small machinery
- Garden equipment
- Farm tools
Ratchet Locking System
The integrated ratchet brake helps:
- Hold the load securely
- Prevent accidental rollback
- Improve operator safety
- Allow controlled movement
Most models allow both forward and reverse operation using the ratchet selector.
Comfortable Crank Handle
The ergonomic handle provides:
- Better grip
- Smooth rotation
- Reduced operator fatigue
- Improved control
The rotating handle knob allows comfortable operation during extended use.
Steel Wire Rope or Web Strap
Depending on the model, the winch may be supplied with:
- Galvanized steel wire rope
- Heavy-duty polyester web strap
Both options include a forged safety hook with a spring-loaded latch.
Compact Portable Design
The lightweight design allows installation on:
- Boat trailers
- Pickup trucks
- Utility trailers
- Workshop benches
- Farm equipment
Applications
A hand winch is ideal for:
Boat Trailers
Used for:
- Pulling boats onto trailers
- Launching boats
- Recovering small watercraft
Utility Trailers
Suitable for loading:
- Lawn mowers
- ATVs
- Small generators
- Equipment
Farming
Useful for:
- Moving farm equipment
- Pulling fencing materials
- Loading supplies
Workshops
Helps move:
- Machinery
- Heavy toolboxes
- Engines
- Spare parts
Construction
Suitable for:
- Pulling building materials
- Positioning equipment
- Temporary lifting tasks within the manufacturer’s rated limits
How a Hand Winch Works
The operator turns the crank handle, which rotates a gear connected to the drum. As the drum turns, the cable or strap winds in, pulling the load toward the winch.
The built-in ratchet mechanism locks the drum between handle movements, preventing the load from rolling backward and improving safety.
Advantages
- No electricity required
- Easy to operate
- Portable
- Durable steel construction
- Reliable ratchet brake
- Low maintenance
- Suitable for indoor and outdoor use
- Smooth pulling operation
- Affordable operating cost
- Long service life
800 lbs vs 1200 lbs Hand Winch
| Feature | 800 lbs | 1200 lbs |
|---|---|---|
| Maximum Pulling Capacity | 363 kg | 544 kg |
| Best For | Small trailers and boats | Larger trailers and heavier equipment |
| Weight | Lighter | Slightly heavier |
| Typical Applications | Home and light commercial | Commercial and farm use |
How to Use a Hand Winch
Step 1
Inspect the cable, hook and mounting bolts.
Step 2
Secure the winch to a strong mounting surface.
Step 3
Attach the safety hook to a suitable load attachment point.
Step 4
Ensure the ratchet is set to the correct direction.
Step 5
Turn the crank handle steadily to move the load.
Step 6
Once the load reaches the desired position, allow the ratchet to lock securely.
Step 7
Release the load slowly when unloading.
Safety Tips
- Never exceed the rated load capacity.
- Inspect the cable or strap before each use.
- Keep hands away from the drum during operation.
- Ensure the mounting bolts are tightened securely.
- Replace damaged cables or hooks immediately.
- Keep bystanders away while pulling heavy loads.
- Wear protective gloves when handling steel wire rope.
Maintenance
- Lubricate gears periodically.
- Keep the cable clean and properly wound.
- Inspect the ratchet mechanism regularly.
- Tighten loose bolts.
- Store in a dry location when not in use.
- Touch up damaged paint to help prevent corrosion.
How to Choose the Best Hand Winch
Before purchasing, consider:
- Required pulling capacity
- Mounting location
- Cable or strap type
- Gear ratio
- Handle length
- Frame strength
- Corrosion protection
- Spare parts availability
- Warranty
Package Contents
A standard package normally includes:
- 1 × Manual Hand Winch
- Steel wire rope or web strap
- Forged safety hook
- Crank handle
- User manual
Hand Winch Prices in Kenya
Special Offers
| Model | Capacity | Offer Price |
|---|---|---|
| Hand Winch | 800 lbs (363 kg) | KSh 4,800 |
| Hand Winch | 1200 lbs (544 kg) | KSh 6,400 |
These prices offer excellent value for farmers, trailer owners, workshops and contractors looking for a dependable manual pulling solution.
Why Buy a Hand Winch?
A manual hand winch is a practical and reliable tool for pulling and positioning heavy loads without the need for electricity or fuel. Its compact design, durable steel construction and secure ratchet mechanism make it ideal for trailers, workshops, farms and construction sites.
Whether you are loading a boat onto a trailer, moving equipment around a workshop or handling materials on a farm, an 800 lbs or 1200 lbs hand winch provides safe, controlled and efficient operation at an affordable cost.
Frequently Asked Questions
What is a hand winch used for?
A hand winch is used for manually pulling or positioning heavy loads such as boats, trailers, machinery and equipment.
What is the difference between the 800 lbs and 1200 lbs models?
The 800 lbs model has a maximum pulling capacity of 363 kg, while the 1200 lbs model can pull up to 544 kg under ideal conditions.
Does the hand winch require electricity?
No. It is completely manual and operates using a crank handle.
Can it be mounted on a trailer?
Yes. These winches are commonly installed on boat trailers, utility trailers and equipment trailers using the bolt-on mounting base.
Does it include a safety hook?
Yes. Most models are supplied with a forged safety hook and either a steel wire rope or a heavy-duty web strap, depending on the version.
Is it suitable for lifting people?
No. Manual hand winches of this type are designed for pulling and positioning loads. They should never be used for lifting or supporting people.
How often should it be lubricated?
Lubricate the gears and moving parts periodically according to the manufacturer’s recommendations or whenever the winch operates in dusty, wet or demanding conditions.
What is the price of a hand winch in Kenya?
Your current offers are:
- 800 lbs Hand Winch – KSh 4,800
- 1200 lbs Hand Winch – KSh 6,400
