Description

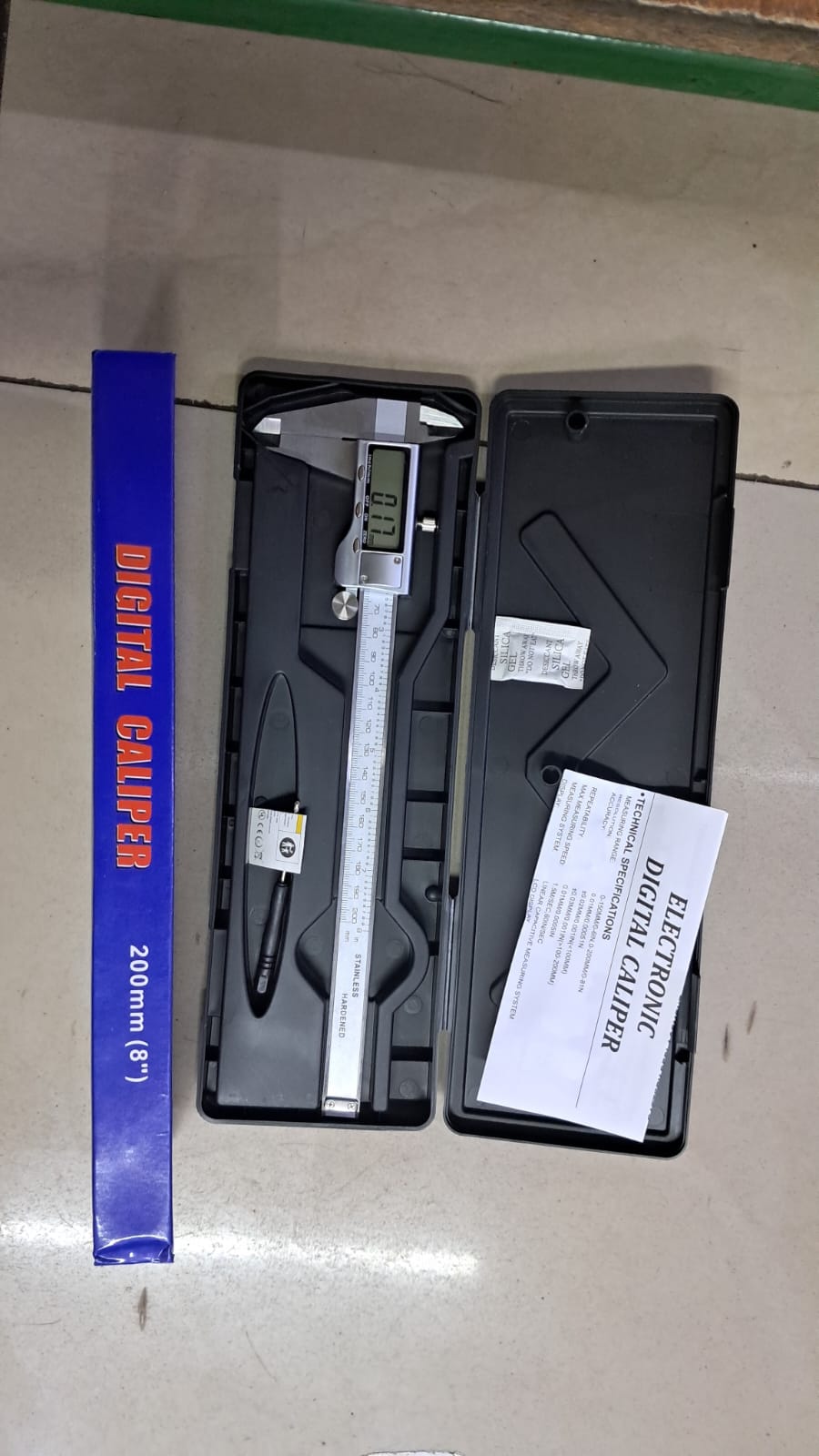

A 200mm digital vernier caliper is a precision measuring tool for checking outside diameter, inside diameter, thickness, depth and step dimensions. It has a larger measuring capacity than the common 150mm caliper, making it useful for mechanics, machinists, engineers, fabricators, workshops and technical students.

Current 200mm digital calipers from brands such as INGCO and TOTAL provide a 0–200mm measuring range with 0.01mm digital resolution. They can also switch between millimetres and inches, allowing one tool to work with both metric and imperial measurements.

200mm Digital Vernier Caliper Specifications

Feature	Specification
Product	Digital Vernier Caliper
Measuring Range	0–200mm
Imperial Capacity	About 0–8 inches
Resolution / Reading	0.01mm
Display	Digital LCD
Units	mm / inch
Outside Measurement	Yes
Inside Measurement	Yes
Depth Measurement	Yes
Step Measurement	Yes
Zero Setting	Yes
Typical Material	Stainless steel on heavy-duty models
Protection	IP54 on TOTAL TMT322006 and selected models
Battery	3V on TOTAL TMT322006
Storage	Plastic protective case
Main Uses	Automotive, machining, fabrication, engineering and maintenance

The official INGCO HDCD01200 specification confirms a 0–200mm range, 0.01mm reading, metric/inch conversion and protective plastic box.

The TOTAL TMT322006 adds an IP54 housing and 3V battery system while keeping the same 0–200mm range and 0.01mm reading.

200mm Measuring Capacity

The caliper can measure components from:

0 to 200mm

or approximately:

0 to 8 inches.

This extra capacity is one of its main advantages over a 150mm caliper.

A 200mm model can measure larger:

• Shafts
• Bearings
• Pipes
• Brake components
• Metal plates
• Machine parts
• Bushes
• Pulleys
• Flanges
• Fabricated components

For general mechanical and workshop work, 200mm provides a useful balance between capacity and portability.

Fine 0.01mm Digital Reading

The digital display reads changes as small as:

0.01mm

This gives much finer readings than an ordinary ruler or tape measure.

Both the INGCO HDCD01200 and TOTAL TMT322006 specify a 0.01mm reading.

However, 0.01mm is the instrument’s resolution, not automatically its guaranteed accuracy.

A digital caliper may display 0.01mm increments while its true measurement uncertainty is larger. For precision quality-control work, check the manufacturer’s stated accuracy and calibration documentation for the exact model.

Large Digital LCD Display

The LCD screen makes measurements quick to read.

Instead of reading fine marks on a traditional vernier scale, the measurement appears directly as a number.

This is useful when taking many measurements during:

• Vehicle repair
• Machining
• Production work
• Metal fabrication
• Equipment servicing
• Parts inspection

It can also reduce reading mistakes for users who are less experienced with traditional vernier scales.

Millimetre and Inch Measurement

A key advantage of a 200mm digital vernier caliper is instant metric and imperial conversion.

The INGCO HDCD01200 allows metric/inch conversion at any slider position.

The TOTAL TMT322006 provides the same conversion function.

This is useful because some equipment uses metric dimensions while imported machinery and older components may use imperial sizes.

Instead of calculating the conversion manually, you can change the display using the unit button.

Measures Outside Dimensions

The large lower jaws are designed for external measurements.

They can measure:

• Shaft diameter
• Pipe outside diameter
• Bolt diameter
• Plate thickness
• Bearing width
• Bush outside diameter
• Machine components
• Metal bar thickness

Open the jaws wider than the component, position them squarely across the part and close them gently until both faces make contact.

Avoid squeezing the jaws tightly.

Excessive pressure can affect the reading.

Measures Inside Diameter

The smaller upper jaws measure internal dimensions.

They are useful for:

• Pipe bore
• Bearing housing diameter
• Bush inside diameter
• Holes
• Slots
• Internal recesses

Insert the upper jaws into the opening and expand them until both measuring surfaces contact the walls.

For round holes, gently move the caliper to find the correct diameter while keeping it properly aligned.

Depth Measurement

A depth blade or rod extends from the rear of the caliper when the slider moves.

This allows the tool to measure:

• Hole depth
• Slot depth
• Recess depth
• Counterbore depth
• Container depth

A 200mm caliper gives more depth capacity than a 150mm model, although the exact usable depth may depend on the shape of the component.

Step Measurement

Digital calipers can also measure step dimensions.

This is useful when inspecting machined parts with shoulders or different surface heights.

Common examples include:

• Stepped shafts
• Machined blocks
• Automotive parts
• Housings
• Flanges
• Spacers

This four-way measuring ability makes a digital caliper much more versatile than a simple measuring rule.

Stainless Steel Construction

Many heavy-duty 200mm digital calipers use stainless steel for the measuring body and jaws.

A current Kenya listing for the INGCO HDCD28200 describes hardened stainless-steel measuring surfaces and a stainless-steel body.

Stainless steel offers several advantages:

• Better rigidity
• Good wear resistance
• Smooth sliding
• Better corrosion resistance
• Stronger measuring jaws

For workshop use, a stainless-steel model is normally preferable to a mainly plastic caliper.

IP54 Protection on Selected Models

The TOTAL TMT322006 has an IP54-rated housing.

IP54 means the enclosure provides protection against limited dust entry and water splashes under the conditions of the rating.

This can be useful in workshops where there may be:

• Light coolant splash
• Dust
• Fine particles
• Occasional moisture

IP54 does not mean the caliper should be submerged in water.

Always wipe the tool dry and store it correctly after use.

Zero Function

Digital calipers normally provide a zero button.

Before taking an important measurement:

1. Clean the measuring jaws.
2. Close them gently.
3. Check the display.
4. Press ZERO if necessary.
5. Open the caliper and take the measurement.

Zeroing helps ensure the measurement starts from the correct reference point.

Some digital calipers can also be zeroed at another position for comparison measurements.

Locking Screw

A locking screw allows the slider to be held in position.

This is useful when you want to measure a component and then remove the caliper before reading or comparing the result.

For example, you can:

Measure a shaft.

Lock the slider.

Remove the caliper.

Compare the opening with another part.

Do not overtighten the lock screw.

Thumb Adjustment

Many stainless-steel digital calipers have a thumb roller or thumb control beneath the display.

This allows smooth movement of the measuring jaws.

Fine control is important when measuring precision components because the jaws should touch the workpiece gently.

3V Battery on TOTAL TMT322006

The TOTAL TMT322006 uses a:

3V battery.

This is confirmed in current Kenya listings for the model.

Battery type can vary between brands.

Do not assume every 200mm caliper uses the same battery. Check the battery compartment or manufacturer specification before purchasing a replacement.

Automatic Power-Off on Selected Models

Some modern digital calipers switch themselves off after a period without movement.

A current Kenyan listing for the INGCO 200mm HDCD28200 advertises automatic power-off when the tool remains unused.

This helps extend battery life.

Auto-off is model dependent, so confirm it before advertising the feature for an unbranded caliper.

Best Uses of a 200mm Digital Vernier Caliper

Automotive Repair

Mechanics can use the tool for:

• Shaft measurements
• Brake components
• Bearings
• Bushes
• Bolts
• Seals
• Spacers
• Engine components
• Wheel and suspension parts

The larger 200mm capacity is useful for automotive parts that are too large for a 150mm caliper.

Machine Shops

Machinists can use the digital caliper for quick checks during:

• Turning
• Milling
• Drilling
• Fabrication
• CNC machining
• Component inspection

For very tight manufacturing tolerances, a suitable micrometer or calibrated inspection tool may still be required.

Welding and Fabrication

Fabricators can measure:

• Plate thickness
• Tube diameter
• Rod diameter
• Hole diameter
• Fabricated brackets
• Spacers
• Component dimensions

The digital display makes measurements fast during repeated fabrication work.

Engineering and Maintenance

A 200mm caliper is also useful when repairing:

• Pumps
• Motors
• Generators
• Industrial machinery
• Gearboxes
• Agricultural equipment
• Workshop machines

It can help identify replacement bearings, shafts, bushes and other mechanical parts.

200mm vs 150mm Digital Vernier Caliper

Feature	150mm Caliper	200mm Caliper
Maximum Range	150mm	200mm
Approx. Imperial Range	6″	8″
Common Resolution	0.01mm	0.01mm
Outside Measurement	Yes	Yes
Inside Measurement	Yes	Yes
Depth Measurement	Yes	Yes
Portability	More Compact	Slightly Larger
Large Automotive Parts	Limited	Better
Fabrication Work	Good	Better Range
Small Precision Parts	Excellent	Excellent

The main advantage of the 200mm model is the additional:

50mm measuring capacity.

That is about 33% more maximum range than a 150mm caliper.

If most of your work involves small components, 150mm may be enough.

For garage, machining and fabrication work, 200mm gives more flexibility.

Digital vs Manual Vernier Caliper

Feature	Digital Caliper	Manual Vernier
Display	LCD	Mechanical Scale
Reading Speed	Fast	Slower
Typical Resolution	0.01mm	Model dependent
mm/Inch Conversion	Instant	Separate scales
Zero Function	Yes	No electronic zero
Battery Required	Yes	No
Beginner Friendly	Very Good	Requires practice
Electronics	Yes	No

A digital caliper is easier and faster to read.

A manual vernier has the advantage of not depending on a battery.

Digital Caliper vs Micrometer

A digital caliper is a general-purpose measuring instrument.

A micrometer is normally used when higher precision is required over a smaller measuring range.

Use a caliper for:

• Inside measurement
• Outside measurement
• Depth
• Steps
• Quick workshop inspection

Use a micrometer when the job requires tighter control of dimensions such as shaft diameter or material thickness.

Many professional workshops need both tools.

How to Use a 200mm Digital Vernier Caliper

Clean the measuring jaws first.

Switch on the caliper.

Close the jaws gently.

Press ZERO if required.

Select millimetres or inches.

Open the jaws wider than the component.

Place the tool squarely against the part.

Close the jaws using light pressure.

Check that the caliper is correctly aligned.

Read the result from the LCD.

Repeat the measurement if precision is important.

Avoid Measuring Hot Parts

A component that has just been machined, welded or heated can expand.

The caliper itself can also change slightly with temperature.

For reliable precision measurements, allow hot components to cool before measuring them.

This is particularly important in machining and engineering work.

Keep the Jaws Clean

A small piece of dirt between the measuring surfaces can change the result.

Before precision measurement, remove:

• Metal filings
• Grinding dust
• Oil
• Grease
• Dirt
• Coolant residue

Wipe the measuring faces with a clean cloth.

Do Not Use the Caliper as a Clamp

A digital caliper is a precision instrument.

Do not use it as:

• A clamp
• A spanner
• A scriber
• A pry tool
• A hammer

Do not force the slider when it becomes tight.

Damage to the jaws or measuring beam can make readings unreliable.

Never Measure a Rotating Part

Do not put the jaws onto a moving shaft, drill, lathe workpiece or other rotating machinery.

Switch off and isolate the equipment first.

This protects both the operator and the measuring tool.

Storage and Maintenance

Store the digital caliper inside its protective case after use.

The INGCO HDCD01200 and TOTAL TMT322006 are both supplied with plastic storage boxes.

For longer tool life:

• Keep it dry.
• Wipe away oil and coolant.
• Do not drop it.
• Protect the measuring jaws.
• Remove the battery for very long storage if recommended.
• Do not expose the LCD to extreme heat.
• Check zero regularly.

A precision tool should not be stored loose together with hammers, spanners and heavy sockets.

How to Choose a Good 200mm Digital Caliper

Before buying, check:

• True 0–200mm measuring range
• 0.01mm resolution
• Published accuracy if precision matters
• Stainless-steel measuring body
• Clear LCD display
• Metric/inch conversion
• Zero function
• Depth measuring blade
• Locking screw
• Smooth slider
• IP rating if required
• Battery availability
• Protective storage case

For professional engineering inspection, a calibration certificate and stated accuracy are more important than choosing the cheapest digital caliper.

200mm Digital Vernier Caliper Price in Kenya

Prices vary according to brand, construction and protection rating.

A generic 200mm digital vernier caliper is currently listed in Nairobi at about KSh 3,300.

The TOTAL TMT322006 is currently available from Kenyan suppliers from about KSh 4,890 to KSh 6,900, with 0–200mm capacity, 0.01mm reading, IP54 housing, 3V battery and protective box.

Current INGCO 200mm digital caliper listings are around KSh 5,997 to KSh 7,997, depending on seller.

200mm Digital Caliper	Approx. 2026 Kenya Price
Generic 200mm Model	Around KSh 3,300
TOTAL TMT322006	KSh 4,890–6,900
INGCO 200mm	KSh 5,997–7,997
Professional Precision Brands	Higher depending on accuracy and calibration

Prices can change by seller, stock level and included accessories.

Why Buy a 200mm Digital Vernier Caliper?

A 200mm digital vernier caliper in Kenya is a useful upgrade for anyone who needs more measuring capacity than the standard 150mm model.

It combines a large 0–200mm range with a fine 0.01mm digital reading, while metric/inch conversion makes it suitable for both local and imported machinery.

The tool can handle four important measurement types:

• External dimensions
• Internal dimensions
• Depth
• Step dimensions

For mechanics, machine shops, fabricators and maintenance technicians, the extra 50mm measuring range makes the 200mm model especially useful for larger shafts, bearings, pipes and fabricated components.

Frequently Asked Questions

What is the measuring range of a 200mm digital vernier caliper?

The measuring range is 0–200mm, which is approximately 0–8 inches.

What is the resolution?

Current INGCO and TOTAL 200mm digital calipers have a 0.01mm reading or resolution.

Is 0.01mm the accuracy?

Not necessarily. It is the display resolution. The actual accuracy depends on the model and manufacturer specification.

Can it measure inches?

Yes. Current INGCO and TOTAL 200mm models support instant metric/inch conversion.

Can it measure internal diameter?

Yes. The upper measuring jaws are designed for holes, pipes, bushes and other internal dimensions.

Can it measure outside diameter?

Yes. The main jaws measure shafts, bolts, bearings, pipes and other outside dimensions.

Does it measure depth?

Yes. A digital caliper uses its extending depth blade or rod to measure holes, slots and recesses.

Can it measure steps?

Yes. Step measurement is one of the standard functions of a full digital caliper.

Is the 200mm model better than a 150mm caliper?

It offers 50mm more measuring capacity, making it better for larger automotive, engineering and fabrication components.

Does it have IP54 protection?

The TOTAL TMT322006 has an IP54 housing. IP ratings should be checked on other models individually.

Is IP54 waterproof?

No. IP54 provides resistance to dust intrusion and water splashes. It does not mean the caliper can be submerged.

What battery does it use?

The TOTAL TMT322006 uses a 3V battery. Battery type can vary with other models.

Does it come with a storage case?

Yes. Both current INGCO HDCD01200 and TOTAL TMT322006 specifications list a protective plastic box.

Is it suitable for mechanics?

Yes. It can measure bearings, bushes, shafts, bolts, brake parts and many other automotive components.

Is it suitable for machining?

Yes. It is useful for quick workshop inspection, although a micrometer or calibrated instrument may be needed where very tight tolerances apply.

What is the price of a 200mm digital vernier caliper in Kenya?

Current prices start around KSh 3,300 for generic models. TOTAL 200mm models are around KSh 4,890–6,900, while current INGCO listings are approximately KSh 5,997–7,997.
