Description

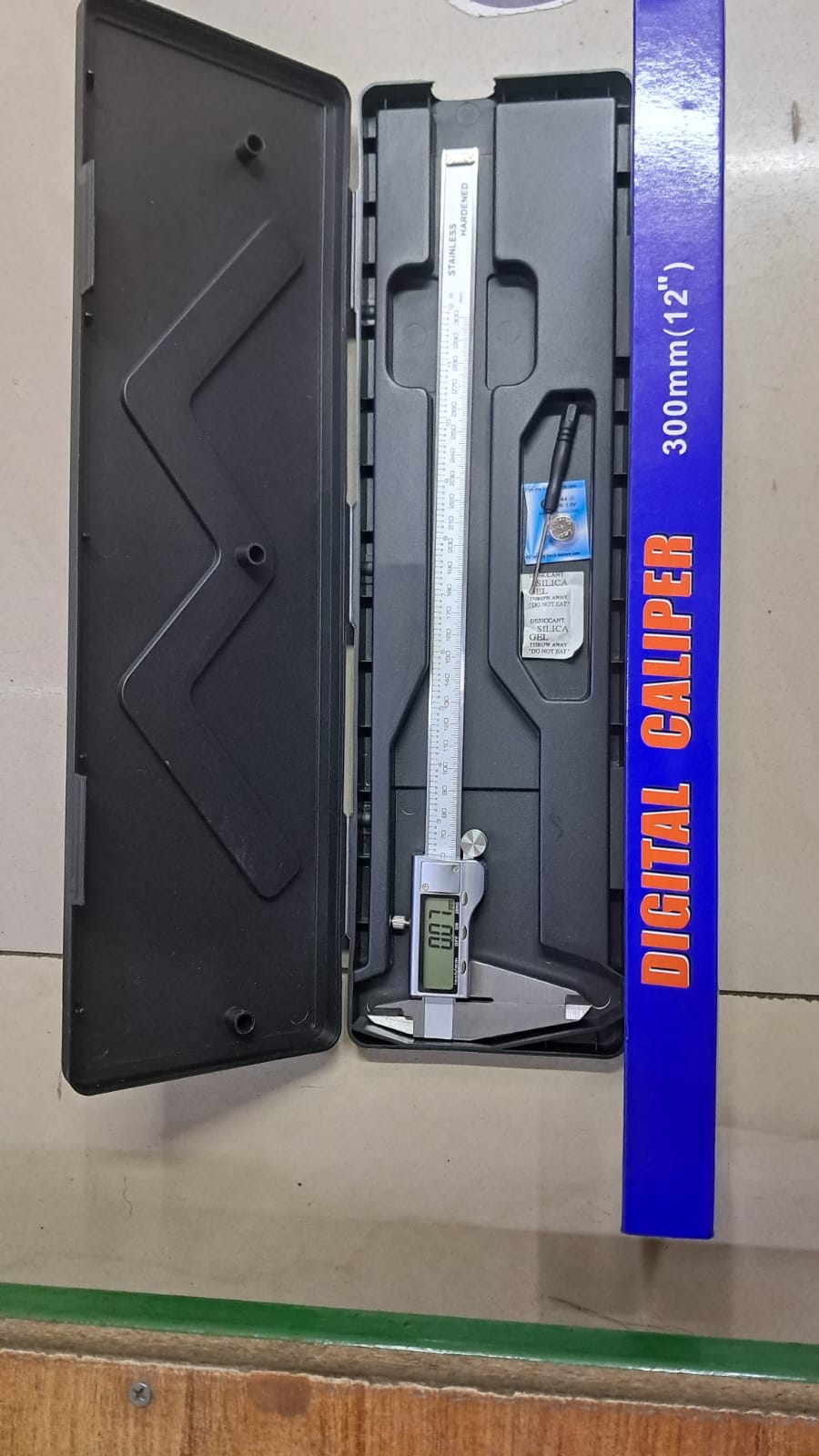

A 300mm digital vernier caliper is a long-range precision measuring tool designed for components that are too large for standard 150mm and 200mm calipers. It measures up to 300mm or 12 inches, making it suitable for large bearings, pipes, brake parts, shafts, flanges, fabricated components and industrial machinery.

A common professional 300mm digital caliper provides 0.01mm resolution, metric and imperial measurement, a large LCD screen and four main measuring functions: outside, inside, depth and step measurement. Current stainless-steel models also commonly include a locking screw, thumb roller and zero-setting function.

300mm Digital Vernier Caliper Specifications

Feature	Specification
Product	Digital Vernier Caliper
Measuring Range	0–300mm
Imperial Range	0–12 inches
Resolution	0.01mm / 0.0005 inch
Typical Accuracy	About ±0.02mm to ±0.04mm, model dependent
Display	Large Digital LCD
Units	mm / inch
Outside Measurement	Yes
Inside Measurement	Yes
Depth Measurement	Yes
Step Measurement	Yes
Zero Setting	Yes
Material	Hardened Stainless Steel on common models
Locking Screw	Yes
Thumb Roller	Commonly included
Auto Power-Off	Available on many models
Typical Battery	LR44 or model-specific button battery
Maximum Capacity	300mm / 12″
Main Uses	Automotive, machining, fabrication, engineering and maintenance

One current Kenyan 300mm model specifies a 0–300mm range, 0.01mm resolution, ±0.02mm accuracy, stainless-steel construction, LR44 battery and automatic power-off.

Accuracy varies between brands. Another current 300mm listing gives approximately ±0.03mm to ±0.04mm, so 0.01mm should be treated as the display resolution rather than assuming every 300mm caliper is accurate to ±0.01mm.

Extra-Large 300mm Measuring Range

The biggest advantage of this caliper is its measuring capacity:

0–300mm

or:

0–12 inches

A 300mm digital caliper can measure parts that cannot fit inside a 150mm or 200mm model.

This makes it particularly useful for:

• Large bearings
• Brake discs
• Pipes
• Large shafts
• Flanges
• Pulleys
• Machine parts
• Fabricated steel components
• Pump components
• Generator parts
• Automotive components

For workshops handling both small and large parts, the 300mm size provides much greater flexibility.

0.01mm Digital Resolution

A common 300mm digital caliper displays measurements in increments of:

0.01mm

or:

0.0005 inch

This specification is found on current professional 300mm models sold in Kenya.

The fine digital resolution makes it possible to see very small dimensional differences that would be impossible to identify using an ordinary tape measure.

Resolution Is Not the Same as Accuracy

This distinction is important when choosing a precision measuring tool.

A caliper may display:

0.01mm

but that does not automatically mean its measurement is guaranteed accurate to ±0.01mm.

For example, one current Kenyan 300mm model is advertised with:

Resolution: 0.01mm

Accuracy: ±0.02mm.

Another 300mm listing specifies accuracy of approximately ±0.03mm to ±0.04mm.

For engineering inspection or quality-control work, always check the stated accuracy of the exact model.

Large LCD Screen

The digital display makes the measurement easy to read.

Instead of interpreting small vernier scale markings, the measurement appears directly on the LCD.

A large LCD is particularly useful when:

• Measuring many parts
• Working in a busy garage
• Checking production components
• Comparing similar parts
• Training students
• Working quickly during maintenance

Current 300mm electronic calipers commonly use a large LCD for clear measurement reading.

Millimetre and Inch Measurement

The digital system can switch between:

Millimetres (mm)

and

Inches (in).

This is useful in Kenyan workshops because machinery and spare parts can use either metric or imperial measurements.

A component measuring 25.40mm, for example, can be displayed as approximately 1 inch without manually calculating the conversion.

Current 300mm models provide one-button mm/inch conversion.

Outside Measurement

The large lower jaws are used for external measurements.

They can check:

• Shaft diameter
• Pipe outside diameter
• Bearing outside diameter
• Plate thickness
• Brake disc dimensions
• Bush diameter
• Bolt diameter
• Component width

The 300mm capacity is especially useful for large automotive and industrial parts.

For the best reading, keep the caliper square to the component and use gentle measuring pressure.

Inside Measurement

The smaller upper jaws measure internal dimensions.

They are useful for checking:

• Pipe internal diameter
• Bearing housings
• Large holes
• Bushes
• Cylindrical openings
• Internal slots
• Machined recesses

Current 300mm digital calipers are designed for both internal and external measurement.

When measuring a round hole, keep the jaws properly aligned across the true diameter.

Depth Measurement

The caliper can also measure depth.

A depth blade extends from the rear of the tool as the slider moves.

This can be used for:

• Hole depth
• Recess depth
• Slot depth
• Counterbore depth
• Housing depth
• Machined cavities

A current 300mm electronic caliper specification confirms a dedicated depth-measuring blade.

This makes the tool more versatile than an ordinary ruler.

Step Measurement

Step measuring faces allow you to measure the difference between two levels on a component.

This function is useful for:

• Stepped shafts
• Machined housings
• Flanges
• Automotive components
• Metal blocks
• Precision fabrication

With outside, inside, depth and step measurement available in one instrument, the caliper can replace several simple measuring tools.

Hardened Stainless-Steel Construction

Good 300mm digital calipers commonly use stainless steel.

A current Kenyan 300mm model specifies stainless-steel construction, while another describes a hardened stainless-steel shaft with precision measuring jaws.

Stainless steel offers:

• Good rigidity
• Better durability
• Wear resistance
• Smooth sliding
• Corrosion resistance
• Stable measuring surfaces

This is especially important on a 300mm caliper because the longer beam must remain straight for reliable measurement.

Thumb Roller for Fine Adjustment

A thumb roller helps move the slider smoothly.

Instead of pushing the display housing roughly along the beam, the operator can use the roller for finer adjustment.

This makes it easier to bring the jaws into gentle contact with the component.

Current 300mm electronic calipers are available with both a thumb roller and locking screw.

Locking Screw

The locking screw holds the slider at the selected measurement.

This is useful when the display is difficult to see while the tool is on the component.

You can:

Measure the component.

Lock the slider.

Remove the caliper.

Read or compare the measurement.

The locking feature is also useful when transferring a measurement between components.

Zero Setting at Any Position

A digital caliper can be reset to zero.

Normally, you close the jaws before starting and confirm that the screen reads:

0.00mm

The zero function can also be useful for comparative measurement.

Current 300mm digital models allow zero setting at different positions along the measuring range.

LR44 Battery on Common Models

One current Kenyan 300mm digital caliper uses:

1 × LR44 battery

and supplies the battery with the tool.

Other models may use a different button cell.

Always check the battery compartment or product manual before buying replacements.

Automatic Power-Off

Many modern digital calipers include an automatic shut-off function.

A current 300mm stainless-steel model sold in Kenya includes auto power-off to reduce unnecessary battery use.

This is useful in workshops where the tool may be left switched on between measurements.

The feature is model dependent.

Suitable for Automotive Workshops

The 300mm model is particularly useful for mechanics working with larger vehicle parts.

It can help measure:

• Brake discs
• Large bearings
• Hubs
• Shafts
• Bushes
• Spacers
• Pulleys
• Engine parts
• Suspension components

The extra capacity means you are less likely to reach the maximum opening of the caliper when working on larger components.

Excellent for Brake Disc Measurement

The wide jaw opening can make a 300mm caliper useful when checking certain brake components.

However, caliper jaw geometry must allow correct access to the actual measuring area.

For precision brake disc thickness checks, a dedicated brake disc micrometer may be more suitable because it can reach past any wear lip on the edge of the disc.

Use the correct instrument for the inspection required.

Machine Shop Applications

A 300mm digital vernier caliper is useful around:

• Lathes
• Milling machines
• CNC machines
• Drilling machines
• Fabrication equipment

Machinists can quickly check a workpiece during production without using a separate measuring tool for every dimension.

For very tight tolerances, use a suitable micrometer or calibrated precision instrument.

Fabrication and Welding

Fabricators regularly work with larger components.

The 300mm range can be used to measure:

• Steel plates
• Pipes
• Tubes
• Rods
• Brackets
• Flanges
• Fabricated frames
• Machined parts

Its larger capacity gives it a clear advantage over the standard 150mm model for fabrication work.

Pump and Motor Repair

Technicians repairing pumps and electric motors can use a 300mm digital caliper to check:

• Shafts
• Bearings
• Bushes
• Housings
• Impeller dimensions
• Seals
• Sleeves
• Couplings

Accurate measurements can help when identifying replacement parts.

Generator and Machinery Maintenance

The caliper is also useful when maintaining:

• Generators
• Agricultural machinery
• Industrial machines
• Compressors
• Gearboxes
• Workshop equipment

The 300mm capacity makes it suitable for both smaller components and many medium-sized machine parts.

150mm vs 200mm vs 300mm Digital Caliper

Feature	150mm	200mm	300mm
Maximum Capacity	150mm	200mm	300mm
Approx. Inch Range	6″	8″	12″
Common Resolution	0.01mm	0.01mm	0.01mm
Small Components	Excellent	Excellent	Good
Large Bearings	Limited	Better	Excellent
Large Pipes	Limited	Good	Better
Fabrication	Good	Very Good	Excellent
Portability	Best	Good	Larger
Weight	Lower	Medium	Higher
Price	Lower	Medium	Higher

A 300mm caliper provides double the maximum measuring range of a 150mm model.

It also provides 100mm more capacity than a 200mm model.

For users who regularly work with larger machinery, pipes and fabricated parts, the extra range can justify the larger size.

300mm Digital Caliper vs Measuring Tape

A tape measure is excellent for large general measurements.

A digital caliper is designed for much finer dimensional inspection.

For example, a tape may show a component is approximately:

48mm

A digital caliper may show:

48.37mm

This difference matters when selecting bearings, shafts, bushes, seals and machined components.

300mm Digital Caliper vs Micrometer

Feature	300mm Digital Caliper	Micrometer
Measuring Range	Wide	Usually Narrow per instrument
Outside Measurement	Yes	Yes
Inside Measurement	Yes	Requires another type
Depth Measurement	Yes	Separate depth micrometer
Step Measurement	Yes	Limited
Typical Resolution	0.01mm	Often finer
Speed	Fast	Moderate
General Workshop Use	Excellent	Precision-specific

The caliper is more versatile.

The micrometer is usually better when very tight accuracy is required.

Professional workshops often use both.

How to Use a 300mm Digital Vernier Caliper

Start by cleaning the measuring faces.

Switch on the caliper.

Close the jaws gently.

Check the LCD.

If necessary, press the zero button until it reads:

0.00mm

Select mm or inches.

Open the jaws wider than the component.

Position the caliper squarely.

Close the jaws gently until they contact the component.

Do not squeeze.

Check the alignment.

Read the measurement.

For important work, repeat the measurement to confirm consistency.

Why Alignment Matters More on a 300mm Caliper

The longer measuring range makes correct positioning important.

If the jaws sit at an angle across a shaft or component, the displayed dimension may be larger than the true diameter.

When measuring a round shaft, keep the jaws perpendicular to the shaft axis.

When measuring flat components, make sure both jaw faces contact the correct surfaces evenly.

Avoid Excessive Measuring Pressure

A caliper is not a clamp.

Heavy pressure can:

• Affect the reading
• Damage the jaws
• Wear the slider
• Distort delicate components

Use only enough force to make proper contact.

Consistency is especially important when comparing several parts.

Keep the Measuring Faces Clean

Small particles can cause measurement errors.

Before precision work, remove:

• Metal chips
• Dust
• Grinding particles
• Oil
• Grease
• Coolant residue

A small particle trapped between the jaws and component can change a measurement by several hundredths of a millimetre.

Do Not Measure Moving Machinery

Never put a digital caliper onto:

• A rotating shaft
• A spinning lathe workpiece
• A running drill
• Moving machinery

Stop and isolate the equipment before taking measurements.

This prevents injury and protects the caliper.

Do Not Measure Very Hot Components

Metal changes dimensions as temperature changes.

A shaft immediately after machining or a part that has just been welded may give a different measurement after cooling.

For precision work, allow the component and measuring instrument to reach a stable temperature before taking the final measurement.

Check Zero Regularly

Close the jaws periodically and check whether the screen returns to zero.

If it does not:

Clean the jaws.

Check the battery.

Inspect for damage.

Zero the instrument again.

If readings remain inconsistent, the caliper may need inspection or calibration.

Calibration for Professional Work

For general workshop jobs, a good digital caliper provides convenient measurements.

For quality control, manufacturing or engineering inspection, calibration becomes more important.

A professional user should consider:

• Calibration certificate
• Stated accuracy
• Repeatability
• Traceability
• Manufacturer reputation

Do not choose a precision inspection instrument only because its screen shows two decimal places.

Protective Storage

A 300mm digital caliper should be stored in a protective case when not in use.

The longer measuring beam can be more vulnerable to impact than a short 150mm model.

Keep it away from:

• Hammers
• Heavy sockets
• Loose spanners
• Grinding dust
• Water
• Excessive heat

Wipe it clean before storage.

Benefits of a 300mm Digital Vernier Caliper

The main benefit is its combination of large measuring capacity and fine digital resolution.

It provides:

• 0–300mm range
• 0–12 inch capacity
• 0.01mm resolution
• Digital LCD reading
• mm/inch conversion
• Inside measurement
• Outside measurement
• Depth measurement
• Step measurement
• Zero setting
• Stainless-steel construction on common models

It is particularly useful when a 150mm caliper is too small but you still need much finer measurement than a ruler or tape measure can provide.

How to Choose a 300mm Digital Vernier Caliper

Check the actual specifications before buying.

Look for:

• 0–300mm true range
• 0.01mm resolution
• Published accuracy
• Stainless-steel construction
• Smooth slider movement
• Clear LCD
• mm/inch conversion
• Zero function
• Locking screw
• Thumb roller
• Depth blade
• Auto power-off
• Replaceable battery
• Protective case

For professional machining and inspection, choose a recognised measuring-tool brand with a stated accuracy specification and calibration support.

300mm Digital Vernier Caliper Price in Kenya

Current Kenyan prices vary significantly according to brand and measurement quality.

A generic 300mm digital vernier caliper is currently listed at about KSh 4,800, while another 12-inch stainless-steel digital model is around KSh 5,100.

A current 300mm high-precision model on Jumia Kenya is around KSh 7,000.

The professional INSIZE 1108-300 is currently listed in Kenya at approximately KSh 11,250, while a 300mm Mitutoyo digital caliper is listed at approximately KSh 33,000.

Type	Approx. 2026 Kenya Price
Generic 300mm Digital Caliper	Around KSh 4,800
Stainless-Steel 12″ Model	Around KSh 5,100–5,500
High-Precision Marketplace Model	Around KSh 7,000
INSIZE 1108-300	Around KSh 11,250
Mitutoyo 300mm Digital Caliper	Around KSh 33,000

The wide price difference reflects differences in accuracy, build quality, calibration, repeatability, protection and brand.

For occasional workshop measurements, a good mid-range model may be enough.

For machining inspection and professional quality control, paying more for a recognised precision brand can be worthwhile.

Why Buy a 300mm Digital Vernier Caliper?

A 300mm digital vernier caliper in Kenya is a strong choice for workshops that need more measuring capacity than a normal 150mm or 200mm model provides.

Its 0–300mm / 12-inch capacity allows it to measure larger bearings, pipes, shafts, flanges and fabricated components. At the same time, the common 0.01mm resolution provides much finer readings than an ordinary ruler or tape measure.

The ability to measure outside dimensions, inside dimensions, depth and steps makes it a useful all-round instrument for mechanics, engineers, machinists, fabricators and maintenance technicians.

Frequently Asked Questions

What is the range of a 300mm digital vernier caliper?

It measures from 0 to 300mm, equivalent to approximately 0 to 12 inches.

What is the resolution?

A common professional 300mm digital caliper has a resolution of 0.01mm or 0.0005 inch.

What is the accuracy?

It depends on the model. Current 300mm listings show examples from approximately ±0.02mm to ±0.04mm.

Is 0.01mm resolution the same as ±0.01mm accuracy?

No. Resolution is the smallest displayed increment. Accuracy describes how close the measurement is expected to be to the true dimension.

Can it measure inches?

Yes. Common digital models switch between millimetres and inches.

Can it measure internal diameter?

Yes. The upper jaws measure internal dimensions such as holes, pipes and bearing housings.

Can it measure outside diameter?

Yes. The large lower jaws measure shafts, pipes, bearings and other outside dimensions.

Can it measure depth?

Yes. Current 300mm electronic calipers include a depth-measuring blade.

Can it measure steps?

Yes. Stepped measuring faces allow step dimensions to be checked.

Is 300mm the same as 12 inches?

300mm is approximately 11.81 inches, but this class of caliper is commonly sold as a 300mm / 12-inch caliper.

Is a 300mm caliper better than a 200mm caliper?

It provides 100mm more maximum capacity, making it better for larger pipes, bearings, shafts and fabricated components.

Is it better than a 150mm digital caliper?

For large components, yes. A 300mm model has twice the metric measuring capacity of a 150mm caliper. A 150mm model remains smaller and more convenient for many small parts.

What battery does it use?

One current 300mm model uses an LR44 button battery. Battery type varies by manufacturer, so check the exact model.

Does it switch off automatically?

Many models do. A current stainless-steel 300mm model sold in Kenya includes automatic power-off.

Is it suitable for mechanics?

Yes. Its larger range is useful for bearings, hubs, shafts, brake components, bushes and other vehicle parts.

Is it suitable for machinists?

Yes. It is useful for quick dimensional checks. For very tight tolerances, use an appropriate micrometer or calibrated inspection instrument.

What is the price of a 300mm digital vernier caliper in Kenya?

Current general-purpose 300mm digital calipers cost about KSh 4,800 to KSh 7,000, while professional INSIZE and Mitutoyo models can cost approximately KSh 11,250 and KSh 33,000 respectively.
