1HP Vecounte Submersible Water Pump in Kenya

Description

The 1HP Vecounte submersible water pump is a powerful deep-well pump designed for boreholes, wells, domestic water supply, farming, livestock watering and tank filling. It has a maximum head of 94 metres, a 20-metre power cable, a controller box and an approximately 1.2-inch water outlet.

With its high lifting capacity, this model is a good step up from the smaller 0.75HP Vecounte pump. Comparable 1HP borehole pumps are rated around 0.75kW and commonly use stainless-steel construction, single-phase electricity and outlets around 1.25 inches.

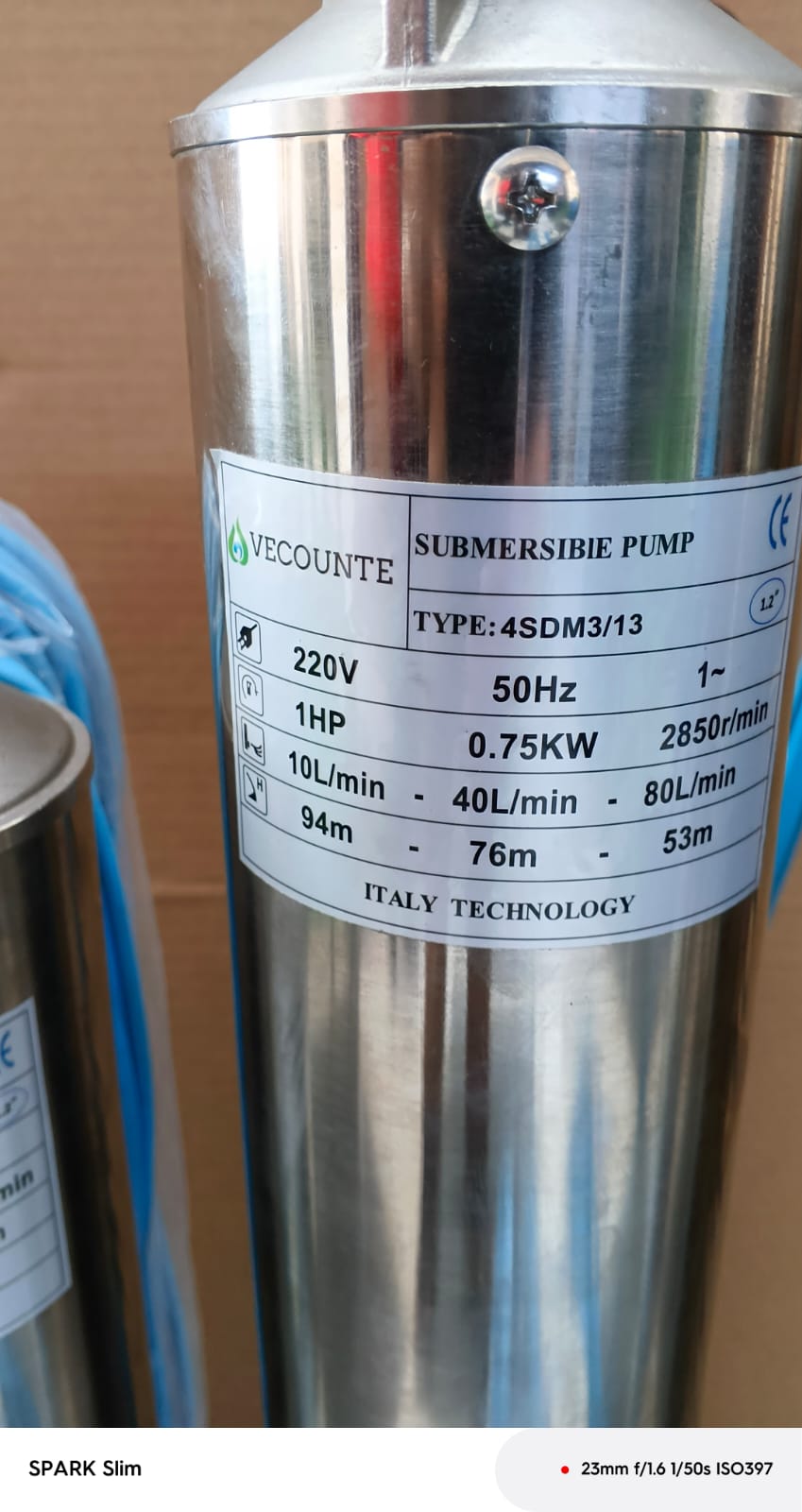

1HP Vecounte Submersible Pump Specifications

The 94m maximum head, 20m cable, controller and 1.2-inch outlet are the specifications supplied for this Vecounte model. Electrical voltage, exact flow rate, pump diameter and other specifications should be confirmed from the Vecounte nameplate or manual rather than copied from another 1HP pump.

Maximum Head of 94 Metres

One of the strongest features of this 1HP Vecounte submersible pump is its 94-metre maximum head, equivalent to approximately 308 feet.

This gives it considerably more lifting capability than lower-head pumps and makes it useful for deeper water sources and elevated storage tanks.

The specification is consistent with this class of pump. For comparison, a 1HP Dayliff model is rated at 93m maximum head, while another 1HP deep-well pump is rated at 90m.

However, a 94m maximum head does not mean the pump should automatically be installed in a 94m-deep borehole. Actual pump selection depends on the dynamic water level, tank height, pipe losses and pressure required at the delivery point.

Powerful 1HP Motor

The Vecounte uses a 1HP motor, equivalent to approximately 0.75kW or 750W.

This power class provides a useful balance between electricity consumption and water-lifting ability. Comparable 1HP borehole pumps with approximately 90–93m maximum head also use 0.75kW motors.

The pump is therefore suitable for installations that require more lifting pressure than smaller 0.5HP and 0.75HP pumps can provide.

Comes With a 20-Metre Cable

The 20-metre electrical cable is another useful feature of the Vecounte 1HP pump.

Because the pump operates below the water level, a proper submersible cable is needed to connect the motor to the electrical control system above ground.

Twenty-metre cables are also found on comparable 1HP submersible pump packages.

For installations deeper than the supplied cable, additional submersible cable may be required. Cable joints must be correctly waterproofed and the cable size should be selected according to the motor current and total cable length.

Controller Box Included

The Vecounte 1HP submersible pump comes with a controller box, making installation easier because you do not have to source the basic pump controller separately.

On comparable single-phase 1HP borehole pumps, the control box houses starting components and can provide motor protection functions such as overload protection.

The exact protection functions of the Vecounte controller should be confirmed from its label.

For additional protection, a professional installer may recommend suitable dry-run, over/under-voltage or level-control protection depending on the installation.

Approx. 1.2-Inch Water Outlet

The pump has an approximately 1.2-inch outlet. In this pump class, the closest common nominal pipe connection is usually 1¼ inches (1.25″).

Comparable 1HP submersible pumps with around 90–95m head commonly use a 1.25-inch outlet.

Before purchasing fittings, confirm the exact Vecounte outlet thread and nominal size. This avoids buying reducers or connectors that do not fit correctly.

Suitable for Deep-Well Water Pumping

The Vecounte 1HP is installed inside the water source, where it pushes water upward through the delivery pipe.

This gives submersible pumps an important advantage over ordinary surface pumps. They do not depend on surface suction to pull water from deep underground.

A 1HP pump in this head range can therefore be considered for:

• Borehole water extraction
• Deep wells
• Domestic water supply
• Elevated tank filling
• Small and medium farms
• Livestock watering
• Greenhouses
• Small-scale irrigation
• Schools and institutions
• Small commercial water systems

Comparable 1HP deep-well pumps are marketed for domestic water supply, farming, irrigation and small commercial applications.

Good for Filling Elevated Water Tanks

If your storage tank is positioned above the borehole, the pump must overcome both the water level below ground and the height of the tank.

The 94m maximum head gives the Vecounte useful capacity for such installations.

For example, if the pumping water level is 40m below ground and the tank inlet is 10m above ground, the static vertical difference is already about 50m. Pipe friction and required delivery pressure must then be added.

This is why the maximum-head figure alone should never be used to select a borehole pump.

Maximum Head Is Not the Same as Borehole Depth

This is especially important when buying the Vecounte 1HP submersible pump.

Imagine a borehole that is 100m deep but has water standing only 25m below ground. The pump does not necessarily have to lift water from the full 100m depth.

The important measurement is the dynamic water level, meaning the water level while pumping.

Pump selection should therefore consider:

Dynamic water level + tank elevation + required pressure + pipe friction losses = approximate total dynamic head.

The required flow at that total dynamic head should then be checked against the pump’s performance curve.

Flow Rate Changes With Pumping Head

Do not assume that a submersible pump delivers its maximum flow at its maximum head.

Water output normally falls as pumping head increases.

For example, comparable 1HP pumps around this category show substantially different flow ratings depending on hydraulic design. One 90m-head 1HP model is rated around 3m³/hr, while a 93m-head model lists maximum flow up to 5m³/hr.

For this reason, I would not assign an unverified flow rate to the Vecounte 1HP model. The Vecounte pump curve or nameplate should be checked for the exact flow at different heads.

Stainless-Steel Construction

Stainless steel is widely used for deep-well submersible pumps because it provides good corrosion resistance and strength while remaining suitable for continuous submerged installation.

Comparable 1HP pumps in this class use stainless-steel pump bodies and motor casings.

If your Vecounte model is the stainless-steel version, this provides additional protection for long-term borehole and well installations.

Multi-Stage Pumping Design

High-head borehole pumps normally use a multi-stage centrifugal system.

Instead of relying on one impeller to create all the pressure, water moves through several impeller stages. Each stage adds pressure before the water leaves through the delivery outlet.

A comparable 1HP, 90m-head borehole pump, for example, uses a 14-stage design.

This multi-stage arrangement is what allows relatively slim borehole pumps to lift water to considerable heights.

1HP Vecounte vs 0.75HP Vecounte Pump

The biggest difference is lifting capacity. The 1HP Vecounte reaches a maximum head of 94m, giving it 29m more maximum head than the 0.75HP 65m model.

Benefits of the 1HP Vecounte Submersible Pump

High 94m maximum head: Suitable for demanding water-lifting applications.

1HP motor: Provides stronger pumping performance while remaining practical for domestic and farm installations.

20m cable included: Makes initial installation easier and reduces the amount of additional cable required on shallower installations.

Controller box included: Provides the necessary starting/control arrangement for the pump.

Compact borehole installation: The pump works inside the borehole instead of occupying space beside the water source.

Suitable for several applications: It can serve homes, farms, livestock projects, institutions and suitable irrigation systems.

Good tank-filling ability: The high head makes it useful where water needs to be pumped to an elevated storage tank.

Installation Recommendations

The pump should be lowered into the borehole using the correct support arrangement. Never suspend the complete weight of a submersible pump using its electrical cable.

Connect the outlet to a pressure-rated rising pipe of the correct diameter. Avoid unnecessary pipe reductions because smaller pipes increase friction losses.

The pump must remain adequately submerged during operation. Never allow the pump to run dry, as insufficient water can cause overheating and damage.

A qualified technician should also ensure that the pump is correctly earthed and has suitable electrical protection.

How to Choose the Right Vecounte Pump

Before choosing the 1HP Vecounte submersible pump, know the depth of your borehole, dynamic water level and height of the storage tank.

You should also know approximately how much water you need per day.

For a household, this may include bathrooms, kitchen use, cleaning and storage. A farm may also require water for livestock, irrigation and other agricultural activities.

Once these requirements are known, the pump can be checked against the required total dynamic head and flow.

Frequently Asked Questions

What is the maximum head of the 1HP Vecounte submersible pump?

The pump has a maximum head of 94 metres, equivalent to approximately 308 feet.

Does the Vecounte 1HP pump come with a cable?

Yes. This model comes with a 20-metre electrical cable.

Does it come with a controller box?

Yes. A controller box is included with the Vecounte 1HP submersible pump.

What is the outlet size?

The specified outlet is approximately 1.2 inches. Since 1¼-inch outlets are common on comparable 1HP pumps, confirm the exact thread size before purchasing fittings.

How many watts is the Vecounte 1HP pump?

One horsepower is approximately 0.75kW or 750W. Comparable 1HP borehole pumps use a 0.75kW motor.

Can I use the Vecounte 1HP pump for a borehole?

Yes. It is designed for submersible deep-well and borehole water pumping, provided the 94m maximum head and actual performance curve match your installation requirements.

Can it be used for irrigation?

Yes. It can supply water for suitable farm irrigation, livestock watering, greenhouses and storage tanks. The irrigation system must be matched to the pump’s available flow and pressure.

Can I install it in a 90m borehole?

Possibly, but borehole depth alone is not enough to select the pump. You need the dynamic water level, tank elevation, pipe losses and required pressure. A 90m-deep borehole can sometimes have a much shallower pumping water level.

What is the flow rate of the Vecounte 1HP pump?

The exact flow rate should be taken from the Vecounte pump curve or nameplate. Comparable 1HP pumps around 90–93m head range from roughly 3m³/hr to 5m³/hr, but those figures should not be presented as the Vecounte specification without manufacturer data.
