2HP Vecounte Electric Submersible Pump in Kenya

Description

The 2HP Vecounte electric submersible pump is a heavy-duty borehole water pump designed for deep water lifting, elevated tank filling, irrigation, livestock farming, domestic water supply and commercial water systems. It combines a powerful 2HP electric motor, 159-metre maximum head, stainless-steel pump body, 20-metre cable, controller box and approximately 1.2-inch outlet.

Its 159m lifting capacity places it in the high-head category. Comparable 2HP borehole pumps in Kenya have maximum heads around 149–170m, making this class suitable for demanding deep-borehole installations.

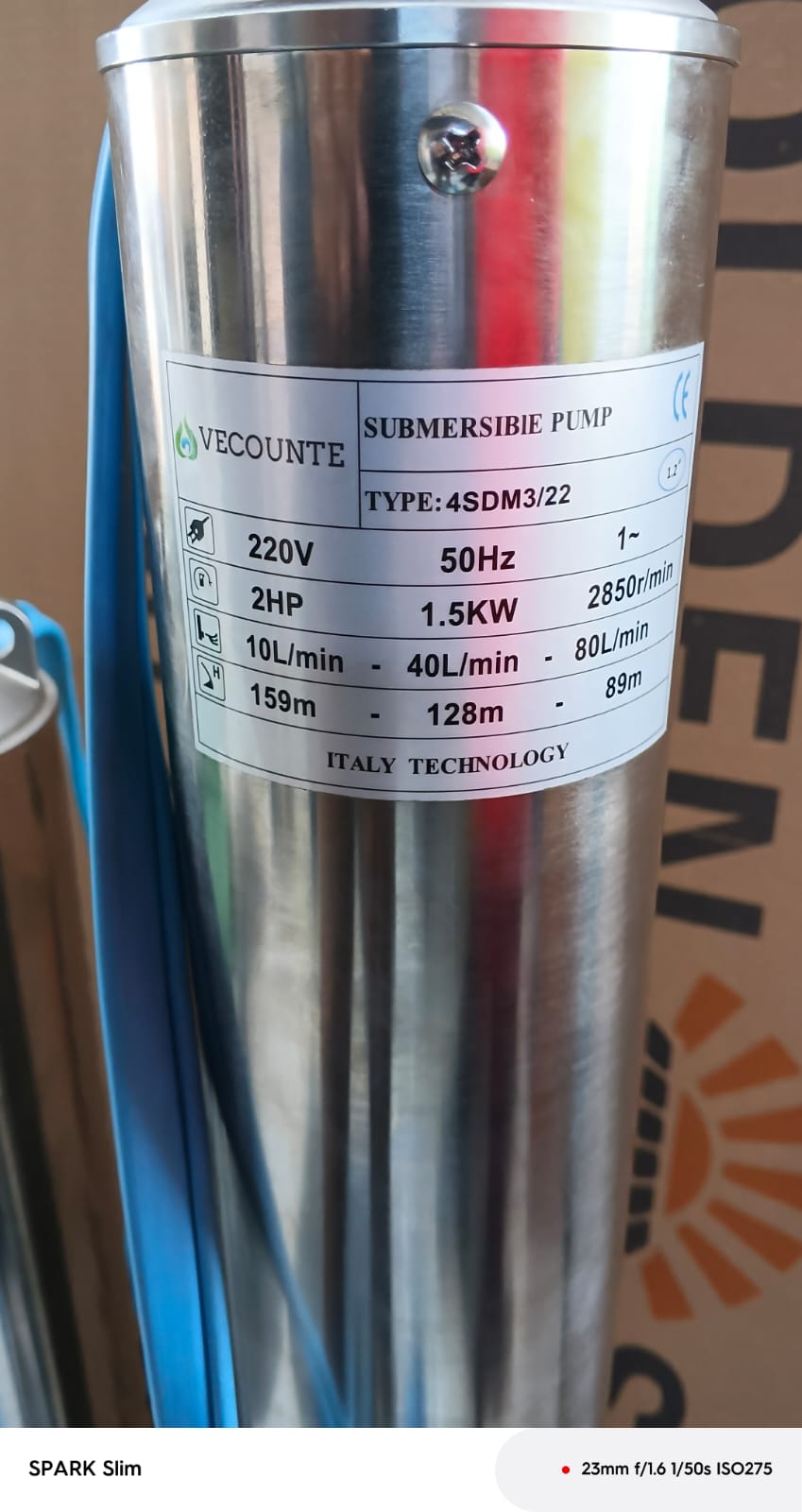

2HP Vecounte Electric Pump Specifications

The 159m head, 20m cable, controller box, stainless-steel construction and approximately 1.2-inch outlet are specifications supplied for this Vecounte model. Exact voltage, flow rate, pump diameter and internal impeller construction should be confirmed from the pump nameplate before installation.

Powerful 2HP Electric Motor

The Vecounte uses a 2HP electric motor, which is approximately 1.5kW or 1500W.

This is a substantial increase in pumping capacity compared with smaller domestic borehole pumps. Other 2HP high-head submersible pumps also use 1.5kW motors, confirming that this is the standard power class for many pumps around this size.

The larger motor makes the pump particularly useful where water needs to be lifted from a significant depth or delivered to an elevated storage tank.

Maximum Head of 159 Metres

The standout feature of this 2HP Vecounte electric pump is its 159m maximum head.

That is approximately 522 feet of maximum water head.

This does not mean that the pump should automatically be installed in a 159m-deep borehole. Maximum head is the point at which pump flow approaches zero.

A similar 2HP Doyin electric submersible pump has a 158m maximum head and a stated pumping range up to 141m, illustrating the difference between maximum head and a practical working range.

For the Vecounte, the correct operating depth should therefore be determined from its own performance curve.

Stainless-Steel Pump Body

The stainless-steel construction makes this Vecounte pump well suited to submerged borehole installations.

Stainless steel provides good corrosion resistance while also giving the pump a strong exterior capable of handling demanding water-pumping conditions.

This construction is common among professional deep-borehole pumps. Comparable 2HP pumps in this head range also use stainless-steel pump and motor casings.

For best service life, the pump should still be used with water that meets the manufacturer’s requirements.

20-Metre Submersible Cable Included

The pump comes with a 20-metre-long electrical cable, reducing the amount of additional cable required during installation.

A 20m waterproof submersible cable is also supplied with comparable 2HP deep-well pump packages.

If the pump needs to be installed deeper than the supplied cable permits, additional cable can be joined to it. However, the extension must be properly sized for the motor current and total cable distance.

The joint must also be completely waterproof because part of the cable operates inside the borehole.

Controller Box Included

Another advantage is that the controller box comes with the pump.

The controller provides the electrical starting and operating arrangement required by the pump motor. Comparable single-phase 2HP borehole pump packages are also supplied with a matched motor and control box.

The controller should be installed above ground in a dry, accessible and properly protected position. A comparable 2HP submersible-pump manual specifically recommends keeping the control box dry and protected from direct weather exposure.

Depending on the Vecounte controller specification, additional protection may be recommended for dry running, voltage fluctuations or overload.

Approx. 1.2-Inch Water Outlet

The Vecounte has an approximately 1.2-inch outlet for connecting the rising main.

In this pump category, 1¼-inch or 1.25-inch is a common nominal connection. For example, a comparable 2HP pump with a 158m maximum head uses a 1.25-inch outlet.

Confirm the exact Vecounte outlet thread before buying fittings, HDPE adapters or reducers.

Keeping the delivery pipe close to the recommended diameter also helps reduce unnecessary friction losses.

Designed for Deep Boreholes

This pump is especially useful where a smaller 0.75HP or 1HP pump cannot provide enough lifting pressure.

The pump operates while completely submerged. Instead of pulling water upward from the surface, it pushes water through the rising pipe.

This design makes the 2HP Vecounte submersible pump suitable for deep boreholes, provided the pump is matched correctly to the borehole’s water level and required flow.

Comparable high-head 2HP submersible pumps are specifically designed for deep boreholes, farms, irrigation and elevated water storage systems.

Suitable for Elevated Water Tanks

A high-head pump is useful when water must travel from a deep borehole to a storage tank positioned well above ground level.

For example, imagine that the dynamic water level is 80m below ground and the tank inlet is 15m above ground.

The basic vertical lift is already:

80m + 15m = 95m

You must then add friction losses through the delivery pipe, fittings and valves, plus any required pressure at the delivery point.

This is why having a 159m maximum-head pump can provide useful capacity for demanding installations. However, the final pump selection should still be based on total dynamic head (TDH) and required flow.

Flow Rate and Head

A common mistake is to assume that a pump provides its maximum flow while also pumping at its maximum head.

It does not.

As pumping head increases, the available water flow normally decreases.

For comparison, a 2HP Doyin model with a 158m maximum head has a listed maximum flow of 4.8m³/hr or 4,800 litres per hour. Another 2HP pump in a similar high-head class lists approximately 4.8–6m³/hr depending on the configuration.

These figures should not be treated as the Vecounte flow rate. The exact Vecounte pump curve should be checked before stating its maximum or rated flow.

Multi-Stage High-Pressure Pumping

Deep-borehole pumps achieve high pressure through a multi-stage centrifugal design.

Instead of using a single impeller, several stages progressively increase water pressure as it travels upward through the pump.

A comparable 2HP high-head borehole pump uses 24 stages to achieve its high lifting capability.

This type of construction explains how a relatively narrow submersible pump can generate enough pressure to lift water over substantial vertical distances.

Where Can the 2HP Vecounte Pump Be Used?

The 2HP Vecounte electric submersible pump is suitable for several water-pumping applications, including:

• Deep boreholes
• Elevated water tank filling
• Farm water supply
• Irrigation systems
• Livestock watering
• Domestic water supply
• Schools and institutions
• Hotels and lodges
• Commercial buildings
• Greenhouses
• Rural water projects

Comparable 2HP high-head electric borehole pumps are used for residential, agricultural, institutional and commercial water systems.

Vecounte Submersible Pump Comparison

The 2HP version is the better choice when the installation requires significantly more lifting pressure than the smaller Vecounte models can provide.

Benefits of the 2HP Vecounte Electric Pump

High 159m maximum head: Provides strong lifting capability for demanding borehole installations.

Powerful 2HP motor: The approximately 1.5kW motor provides the power required for high-head pumping.

Stainless-steel construction: Provides strength and corrosion resistance for submerged operation.

20m cable included: Makes installation easier and reduces the initial amount of extra submersible cable required.

Controller box included: The pump comes with its matching basic control system.

Compact borehole design: It delivers substantial lifting pressure without requiring a separate surface pump house.

Wide application range: Suitable for homes, farms, irrigation, livestock projects, institutions and commercial water systems.

Installation Recommendations

The pump should be installed below the borehole’s dynamic water level, while maintaining the manufacturer’s required clearance from the bottom.

Use a properly rated rising main capable of handling the expected pressure. HDPE or another approved borehole delivery pipe should be selected according to the installation requirements.

Do not use the electrical cable to support the weight of the pump. A suitable safety wire or suspension system should be used where required.

Comparable high-head installations recommend a properly sized submersible cable, non-return valve, suitable rising main, safety wire and appropriate motor protection.

Most importantly, do not allow the pump to run dry.

How to Choose the Correct Borehole Pump

Before buying the 2HP Vecounte, determine the dynamic water level, not just the total borehole depth.

You should also know the height of your storage tank, distance between the borehole and tank, required daily water volume, delivery pipe diameter and required pressure.

A useful basic calculation is:

Total Dynamic Head = Vertical Lift + Delivery Height + Pressure Requirement + Friction Losses

After calculating TDH, check how much water the Vecounte pump delivers at that operating head.

This gives a much more accurate pump selection than simply choosing a pump because it has a 159m maximum head.

Frequently Asked Questions

What is the maximum head of the 2HP Vecounte electric pump?

The pump has a maximum head of 159 metres, approximately 522 feet.

What is the motor size?

It uses a 2HP motor, equivalent to approximately 1.5kW or 1500W. Comparable 2HP borehole pumps use the same 1.5kW motor rating.

Does the pump come with a controller box?

Yes. The controller box is included with this Vecounte electric submersible pump.

How long is the cable?

The pump comes with a 20-metre-long submersible electrical cable.

What is the outlet size?

The specified outlet is approximately 1.2 inches. Pumps in this class commonly use a nominal 1¼-inch (1.25″) connection, but confirm the exact Vecounte thread before purchasing fittings.

Is the Vecounte pump stainless steel?

Yes. This model has a stainless-steel pump body, giving it a strong and corrosion-resistant exterior for submerged installations.

Can I use it for irrigation?

Yes. The 2HP Vecounte can be used for irrigation when its available water flow and pressure at the required operating head match the irrigation system.

Can I use it in a deep borehole?

Yes. Its 159m maximum head makes it suitable for many deep-borehole applications. However, suitability should be based on the dynamic water level, tank height, friction losses and required flow, not borehole depth alone.

What is the flow rate of the Vecounte 2HP pump?

The exact Vecounte flow rate should be confirmed from the manufacturer’s pump curve or nameplate. Comparable 2HP pumps around 158–170m maximum head can deliver maximum flows around 4.8–6m³/hr, but these should not be presented as Vecounte specifications without verified manufacturer data.

Can the pump run dry?

No. A submersible pump should remain adequately submerged during operation. Running it without enough water can cause overheating and damage to the motor and pump components.
