Description

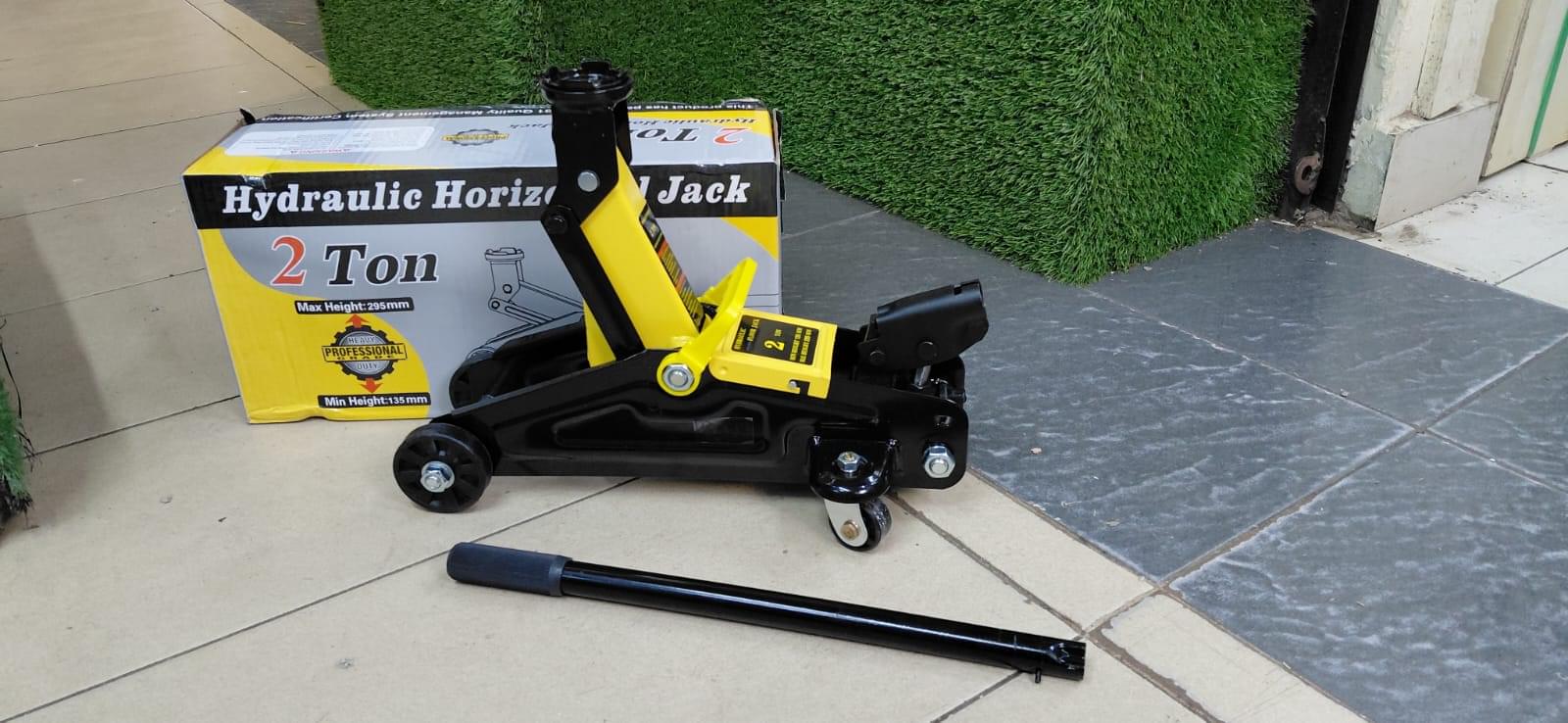

A 2 tonne mechanical trolley jack is a portable lifting tool used to raise cars and light commercial vehicles during tyre replacement, brake servicing, suspension repairs and general maintenance. It is also commonly called a 2-ton hydraulic trolley jack, garage floor jack or vehicle service jack.
Although many people use the word “mechanical,” most trolley jacks in this category operate through a manual hydraulic pumping system. The user pumps the long handle by hand, and hydraulic pressure raises the lifting arm and saddle.
The jack has a maximum rated lifting capacity of 2 tonnes or 2,000kg. It is suitable for many saloon cars, hatchbacks, station wagons and smaller SUVs. However, the jack should lift only one part of the vehicle at a time. The vehicle’s total weight, weight distribution and approved lifting points must be checked before use.
A trolley jack is made for lifting only. After raising the vehicle, it must be supported using correctly rated axle stands before anyone works underneath it. Manufacturer safety instructions warn against using the jack as the only support for a raised vehicle.
Quick Specifications
| Feature | Typical specification |
|---|---|
| Product name | 2 tonne mechanical trolley jack |
| Rated lifting capacity | 2,000kg |
| Operating system | Manual hydraulic pump |
| Common minimum height | Approximately 85mm to 140mm |
| Common maximum height | Approximately 320mm to 385mm |
| Frame material | Heavy-duty steel |
| Saddle | Round steel lifting saddle |
| Wheels | Two front wheels and two swivel rear castors |
| Handle | Removable pumping and release handle |
| Overload protection | Safety bypass valve on selected models |
| Net weight | Approximately 8kg to 15kg |
| Main use | Vehicle lifting and workshop maintenance |
| Power requirement | None |
A representative general-duty 2-tonne trolley jack has a lifting range of approximately 135mm to 385mm, an overall size of about 550 × 212 × 140mm and a net weight close to 9kg. Low-profile versions may start as low as approximately 86mm for vehicles with reduced ground clearance.
Main Features of the 2 Tonne Trolley Jack
2,000kg lifting capacity
The jack is designed to lift loads weighing up to 2 tonnes under correct conditions.
It is commonly suitable for:
- Saloon cars
- Hatchbacks
- Small vans
- Station wagons
- Compact SUVs
- Light workshop machinery
- Small trailers
- Agricultural equipment components
The 2-tonne rating does not mean that every vehicle weighing less than 2,000kg can be lifted safely from any point. The approved jacking position, ground condition, vehicle balance and jack lifting range must also be considered.
Never exceed the rated capacity. Safety bypass systems fitted to selected trolley jacks help prevent the hydraulic system from continuing to lift when excessive pressure is reached.
Manual hydraulic operation
The jack uses hydraulic oil and a manually operated pump.
When the user moves the handle up and down:
- Hydraulic fluid moves into the lifting cylinder.
- Pressure pushes the hydraulic ram.
- The lifting arm rises.
- The saddle raises the vehicle.
- Turning the release valve allows controlled lowering.
Hydraulic operation reduces the physical force needed to raise a vehicle compared with a basic screw jack.
Low-profile body
Selected 2-tonne trolley jacks have a low front section that fits under vehicles with limited ground clearance.
Low-profile models may have minimum saddle heights from approximately 85mm to 100mm. Standard compact models may begin closer to 130mm or 140mm. One documented low-entry model has a minimum height of 86mm.
A low-profile jack is useful for:
- Sports-style cars
- Lowered vehicles
- Modern saloon cars
- Vehicles with side skirts
- Cars with low jacking points
Before purchasing, measure the distance between the ground and the vehicle’s approved jacking point.
Useful lifting range
A typical compact trolley jack may lift from approximately 135mm to between 320mm and 385mm.
For example, one 2-tonne model has a stated range of 135mm to 320mm, while another general-duty model reaches approximately 385mm.
The maximum height must be sufficient to:
- Remove the tyre from the ground
- Position an axle stand correctly
- Access brake components
- Carry out suspension work
- Raise the vehicle above a workshop ramp or support
A jack may have enough capacity but still be unsuitable when its maximum lifting height is too low.
Strong steel chassis
The body is normally manufactured from pressed or welded steel.
The chassis supports the hydraulic unit, lifting arm, wheels and load saddle. Better designs may include:
- Reinforced side plates
- Strengthening flanges
- Thick steel lifting arms
- Industrial paint
- Corrosion-resistant coating
- Strong pivot pins
Heavy-duty construction improves stability and reduces frame flex during lifting.
Four-wheel trolley design
The jack normally has four wheels:
- Two fixed front wheels
- Two rotating rear castors
The rear castors help the user position the saddle below the correct jacking point.
The jack must be used on a hard, level surface. Soft soil, loose gravel, sloped concrete and uneven paving can cause the wheels to move or the jack to lean.
Rotating lifting saddle
The round saddle supports the vehicle at the approved jacking point.
Some saddles have:
- Serrated surfaces
- Rubber pads
- Removable lifting cups
- Rotating heads
- Raised edges
A rubber saddle pad can help reduce scratching on suitable jacking points. However, it must not make the load unstable.
Removable operating handle
The handle serves two main purposes:
- Pumping the hydraulic mechanism
- Opening or closing the release valve
A removable design makes the jack easier to transport and store. Some compact models include a blow-moulded carrying case.
Controlled lowering valve
The vehicle is lowered by slowly turning the release valve.
The operator should open it gradually. Opening the valve too quickly may cause a sudden descent.
Professional garage jacks may include a dead-man-style release or controlled lowering system. The exact system depends on the model.
Overload safety valve
Selected models include a built-in safety bypass or overload valve.
The valve helps protect the hydraulic system when the load exceeds the jack’s designed working pressure. It does not allow the user to ignore the load rating.
The vehicle weight should always be checked before lifting.
Typical Technical Specifications
| Specification | Typical value |
|---|---|
| Rated capacity | 2 tonnes |
| Rated load | 2,000kg |
| Minimum saddle height | 85mm to 140mm |
| Maximum saddle height | 320mm to 385mm |
| Lifting mechanism | Hydraulic |
| Pumping method | Manual handle |
| Frame | Steel |
| Saddle | Rotating steel saddle |
| Front wheels | Two fixed steel wheels |
| Rear wheels | Two swivel castors |
| Safety protection | Hydraulic overload bypass |
| Approximate weight | 8kg to 15kg |
| Storage | Open storage or carrying case |
| Recommended surface | Firm and level floor |
These specifications are general market ranges. The exact height, weight, chassis length and safety features should be confirmed from the product label and instruction manual.
Main Parts of a Trolley Jack
Saddle
The saddle contacts the vehicle’s approved lifting point.
Lifting arm
The lifting arm moves upward as hydraulic pressure builds.
Hydraulic cylinder
The cylinder converts hydraulic pressure into lifting movement.
Oil reservoir
The reservoir stores the hydraulic jack oil.
Pump mechanism
The pump creates pressure when the handle is moved.
Release valve
The valve controls the lowering process.
Front wheels
The front wheels support the loaded end of the jack.
Rear swivel castors
The castors improve movement and positioning.
Operating handle
The handle is used for pumping and release-valve control.
Carrying handle
Selected models include a fixed carrying handle for transport.
Applications of a 2 Tonne Trolley Jack
Tyre replacement
The jack raises one corner of a vehicle so that a flat or worn tyre can be removed.
Brake servicing
Mechanics can lift the vehicle before removing the wheel to inspect:
- Brake pads
- Brake discs
- Brake drums
- Brake calipers
- Brake hoses
Suspension work
The jack can help provide access to:
- Shock absorbers
- Springs
- Ball joints
- Bushes
- Control arms
Correct axle stands and safe support points are required before repairs begin.
Garage maintenance
Professional and home garages can use the jack for routine vehicle servicing and inspection.
Exhaust-system work
The vehicle can be raised to provide access to exhaust brackets and pipes, but no one should work underneath until axle stands are correctly installed.
Small workshop equipment
The jack may assist with carefully raising suitable machinery for positioning or support, provided the load is stable and below the jack’s rated capacity.
Roadside emergencies
Compact trolley jacks with carrying cases may be transported in a vehicle. However, they are heavier and require a flatter working surface than many emergency scissor jacks.
How to Use a 2 Tonne Trolley Jack
Step 1: Park on level ground
Place the vehicle on a hard, flat surface.
Do not use the jack on:
- Mud
- Loose soil
- Soft grass
- Gravel
- Sloping ground
- Broken paving blocks
Step 2: Secure the vehicle
Apply the parking brake and place the transmission in park or gear.
Use wheel chocks on the wheels that will remain on the ground.
Step 3: Check the vehicle weight
Confirm that the jack capacity is suitable for the vehicle.
Step 4: Find the approved lifting point
Refer to the vehicle owner’s manual.
Do not lift from:
- Plastic body panels
- Exhaust pipes
- Fuel tanks
- Engine oil sumps
- Thin floor panels
- Unapproved suspension parts
Step 5: Close the release valve
Turn the handle or release control clockwise until it is firmly closed. Do not overtighten it.
Step 6: Position the saddle
Roll the jack below the vehicle and centre the saddle under the jacking point.
Manufacturer instructions recommend ensuring that the saddle makes full contact with the approved lifting point before continuing.
Step 7: Pump the handle
Move the handle through full, smooth strokes until the saddle touches the vehicle.
Check the position again.
Step 8: Raise the vehicle
Continue pumping until the vehicle reaches the required height.
Step 9: Install axle stands
Place correctly rated axle stands under the manufacturer-approved support points.
Lower the vehicle gently onto the stands.
Step 10: Test stability
Carefully confirm that the vehicle is stable before starting work.
Step 11: Lower the vehicle
After completing the job:
- Clear tools and workers from below the vehicle.
- Raise the vehicle slightly above the axle stands.
- Remove the stands.
- Open the release valve slowly.
- Lower the vehicle in a controlled way.
- Remove the jack only after the vehicle is fully on the ground.
Important Safety Rules
- Never exceed the 2,000kg capacity.
- Use the jack only on firm and level ground.
- Find the correct jacking point in the vehicle manual.
- Chock the wheels before lifting.
- Never place any part of the body below a vehicle supported only by a jack.
- Use correctly rated axle stands immediately after lifting.
- Do not move or push the vehicle while it is raised.
- Do not use wooden blocks to extend the saddle height.
- Never weld, heat or bend damaged jack parts.
- Do not operate a leaking jack.
- Open the release valve slowly.
- Keep children and untrained people away.
- Do not use the jack to lift people.
- Do not modify the overload valve.
- Use only the recommended hydraulic jack oil.
Trolley-jack manuals repeatedly state that the equipment is intended for lifting rather than supporting a load and that suitable stands must be used before work begins.
Pre-Use Inspection Checklist
| Part | What to inspect |
|---|---|
| Chassis | Cracks, bending or corrosion |
| Saddle | Damage or excessive wear |
| Lifting arm | Smooth movement and correct alignment |
| Hydraulic cylinder | Oil leakage |
| Release valve | Correct operation |
| Pump handle | Bending or loose connection |
| Front wheels | Damage and free movement |
| Rear castors | Free rotation |
| Fasteners | Missing or loose bolts |
| Identification label | Capacity clearly visible |
| Test lift | Jack raises and holds correctly |
Do not use the jack if it sinks slowly under load, makes unusual noises or cannot maintain its lifting position.
Common Trolley Jack Problems
Jack does not rise
Possible causes include:
- Release valve is open
- Low hydraulic oil
- Air in the system
- Excessive load
- Worn seals
- Damaged pump mechanism
Jack rises but slowly lowers
This may indicate:
- Internal hydraulic leakage
- Dirty valve surfaces
- Damaged seals
- Release valve not fully closed
Remove the jack from service until it has been checked.
Handle feels weak or spongy
Air may be trapped inside the hydraulic system.
The bleeding procedure differs between models, so follow the manufacturer’s manual.
Jack does not reach full height
Possible causes include:
- Low oil level
- Air in the hydraulic system
- Overloading
- Worn hydraulic components
Oil leakage
Small amounts of oil around the filler plug may result from overfilling or incorrect storage. Continuous leakage requires inspection and repair.
Maintenance Tips
- Clean the jack after use.
- Keep the wheels free from stones and metal pieces.
- Lubricate pivots, castors and moving joints.
- Check the hydraulic oil level periodically.
- Use only approved hydraulic jack oil.
- Never use brake fluid, engine oil or cooking oil.
- Store the jack with the saddle fully lowered.
- Keep the release valve closed lightly during storage.
- Protect the jack from rain.
- Do not store it upside down.
- Check for rust and damaged paint.
- Bleed trapped air according to the manual.
- Arrange professional servicing when seals or valves fail.
Trolley Jack Versus Bottle Jack
| Feature | Trolley jack | Bottle jack |
|---|---|---|
| Positioning | Easy to roll under a vehicle | Must be carried into place |
| Minimum height | Usually lower | Usually higher |
| Stability | Wide chassis | Narrow base |
| Portability | Larger and heavier | Compact |
| Best application | Garages and regular car work | Trucks and emergency lifting |
| Movement during lift | Wheels allow alignment | Stays mostly fixed |
| Storage | Requires more space | Requires less space |
A trolley jack is normally more convenient for garages and low-clearance cars. A bottle jack may be better for vehicles with high ground clearance.
Trolley Jack Versus Scissor Jack
| Feature | Trolley jack | Scissor jack |
|---|---|---|
| Operation | Hydraulic pumping | Mechanical screw |
| Lifting effort | Lower | Higher |
| Speed | Faster | Slower |
| Stability | Wider base | Narrower |
| Weight | Heavier | Lighter |
| Best use | Workshop servicing | Emergency tyre changes |
| Portability | Moderate | High |
How to Choose the Best 2 Tonne Trolley Jack
Check the vehicle weight
Confirm that 2 tonnes provides a safe capacity for the vehicle being serviced.
For heavier SUVs, pickups and commercial vehicles, a 2.5-tonne or 3-tonne jack may be more suitable.
Measure the ground clearance
Choose a low-profile model when the approved jacking point is close to the ground.
Check maximum lifting height
Ensure the jack raises the vehicle high enough to fit axle stands and remove the wheel.
Look for overload protection
A safety bypass valve adds protection against excessive hydraulic pressure.
Check the chassis strength
Choose a jack with a reinforced steel body and strong pivot points.
Inspect wheel quality
Strong front wheels and freely rotating rear castors make positioning easier.
Consider the storage case
A carrying case is useful for vehicle storage and mobile repair work.
Ask about spare parts
Check whether the supplier can provide:
- Hydraulic seals
- Castors
- Saddle pads
- Pump handles
- Release valves
- Hydraulic oil
Check warranty support
A warranty provides added protection against manufacturing faults.
Price of a 2 Tonne Trolley Jack in Kenya
The price depends on the brand, minimum height, maximum lift, chassis quality, storage case and safety features.
| Type | Estimated price in Kenya |
|---|---|
| Basic compact 2-tonne trolley jack | KSh 5,500–9,000 |
| 2-tonne jack with storage case | KSh 7,000–12,000 |
| Low-profile 2-tonne trolley jack | KSh 12,000–30,000 |
| Professional branded workshop jack | KSh 30,000–55,000+ |
One Kenyan listing has advertised a compact 2-tonne trolley jack with a carrying case near KSh 6,500. Higher-grade imported 2-tonne low-entry models can cost above KSh 13,000, while premium quick-lift designs may exceed KSh 50,000.
Prices may change according to:
- Brand
- Exchange rates
- Seller
- Warranty
- Lifting range
- Low-profile construction
- Single or dual pump
- Carrying case
- Delivery location
Package Contents
A typical package may include:
- One 2-tonne hydraulic trolley jack
- Removable pump handle
- Round lifting saddle
- Front wheels
- Rear swivel castors
- Carrying handle
- Blow-moulded storage case on selected models
- User manual
Axle stands and wheel chocks are usually sold separately unless clearly included in the package.
Why Buy a 2 Tonne Mechanical Trolley Jack?
A 2 tonne mechanical trolley jack is an important lifting tool for vehicle owners, tyre shops, garages and mobile mechanics.
It provides faster and easier lifting than a basic scissor jack. The wide steel chassis, hydraulic system, rotating saddle and four-wheel trolley design make it easier to position below a vehicle.
It is suitable for tyre changes, brake servicing, suspension repairs and routine maintenance. However, it must always be used on firm ground and together with correctly rated axle stands.
Frequently Asked Questions
What is the capacity of the trolley jack?
The rated lifting capacity is 2 tonnes or 2,000kg.
Is the trolley jack mechanical or hydraulic?
It is manually operated but normally uses a hydraulic pumping mechanism. The user provides the mechanical pumping force through the handle.
What is the normal lifting range?
Many standard models lift from about 135mm to between 320mm and 385mm. Low-profile versions may start near 86mm.
Can it lift an SUV?
It may lift some compact SUVs, but the vehicle’s actual weight, jacking-point height and required lift must be checked. A 3-tonne jack may be a better choice for larger SUVs.
Can I work under a car supported by the jack?
No. Support the vehicle using properly rated axle stands before working underneath it.
Can I use the jack on soil?
No. Use it on a hard, flat and stable surface.
Does it need electricity?
No. It is operated by pumping the handle manually.
What hydraulic oil should I use?
Use only hydraulic jack oil recommended by the manufacturer. Do not use brake fluid or engine oil.
Why does my jack lower slowly by itself?
The jack may have a leaking valve, damaged seal or internal hydraulic fault. Stop using it until it is inspected.
Can I use ordinary blocks to increase the lifting height?
No. Improvised blocks may slip and make the load unstable.
Is a storage case included?
Some compact models include a blow-moulded case. Confirm the package before buying.
What is the price of a 2 tonne trolley jack in Kenya?
A basic model may cost approximately KSh 5,500 to KSh 12,000. Low-profile and professional workshop models may cost from KSh 12,000 to over KSh 50,000, depending on their specifications and brand.
Reviews
There are no reviews yet.
