Description
The hybrid submersible pump 9.2kw in kenya is a high performance industrial water pump designed for extreme borehole depths and large scale water delivery systems. It is built to operate fully submerged and push water to the surface with very high pressure while maintaining strong flow output. This pump is suitable for large irrigation farms, estates, institutions, and industrial water supply projects across Kenya. The hybrid submersible pump 9.2kw in kenya is ideal for users who need maximum depth performance, high efficiency, and the flexibility of both solar and electricity operation.
Hybrid Solar and Electric Pumping System
The hybrid submersible pump 9.2kw in kenya uses an advanced AC and DC hybrid system that allows it to run on solar panels during the day and automatically switch to grid electricity or generator when needed. This ensures continuous water supply without interruption. The system includes a high efficiency MPPT controller that improves solar energy utilization by up to 97 to 99 percent efficiency, ensuring maximum power output from solar panels.
This type of system is widely used in Kenya for irrigation and borehole pumping because it reduces electricity costs while maintaining reliable performance.
Key Features of Hybrid Submersible Pump 9.2KW in Kenya
9.2KW Heavy Duty Motor
The hybrid submersible pump 9.2kw in kenya is powered by a strong 9.2KW motor, equivalent to about 12HP. These motors typically run at around 2900 RPM and are designed for deep borehole applications with high efficiency and long operating hours.
Maximum Head of 400 Meters
This pump can lift water up to 400 meters, making it suitable for extremely deep boreholes and high elevation water delivery systems. It is designed for challenging conditions where strong pressure is required.
High Flow Rate of 14,400 Litres per Hour
The hybrid submersible pump 9.2kw in kenya delivers a flow rate of 14,400 litres per hour, which is equal to 14.4 cubic meters per hour. This ensures fast and efficient water supply for large farms, irrigation systems, and industrial use.
Three Phase System Compatibility
Most 9.2KW pumps operate on three phase power (380V to 415V), which provides stable performance and higher efficiency for heavy duty pumping applications.
MPPT Smart Controller Included
The system comes with an intelligent controller box that manages solar and electric input. It protects the pump from dry running, overload, over voltage, and overheating, while also ensuring smooth switching between power sources.
Multi Stage High Pressure Impeller
The pump uses a multi stage centrifugal design, where multiple impellers increase pressure step by step to achieve high head performance.
Stainless Steel Industrial Construction
The pump is built with corrosion resistant stainless steel that protects it from rust and ensures long service life even in mineral rich or sandy borehole water.
Sand Resistant and Sealed Design
Most 9.2KW pumps include sand proof covers and high performance mechanical seals to prevent damage from particles in borehole water.
Large Outlet Size for High Volume Delivery
The hybrid submersible pump 9.2kw in kenya typically comes with outlet sizes around 2 to 3 inches, allowing efficient water transfer for large irrigation systems and commercial applications.
Complete Solar Pump System Compatibility
The pump can be integrated into a full solar system that includes solar panels, inverter, controller, mounting structure, and cables, making it suitable for off grid water pumping projects.

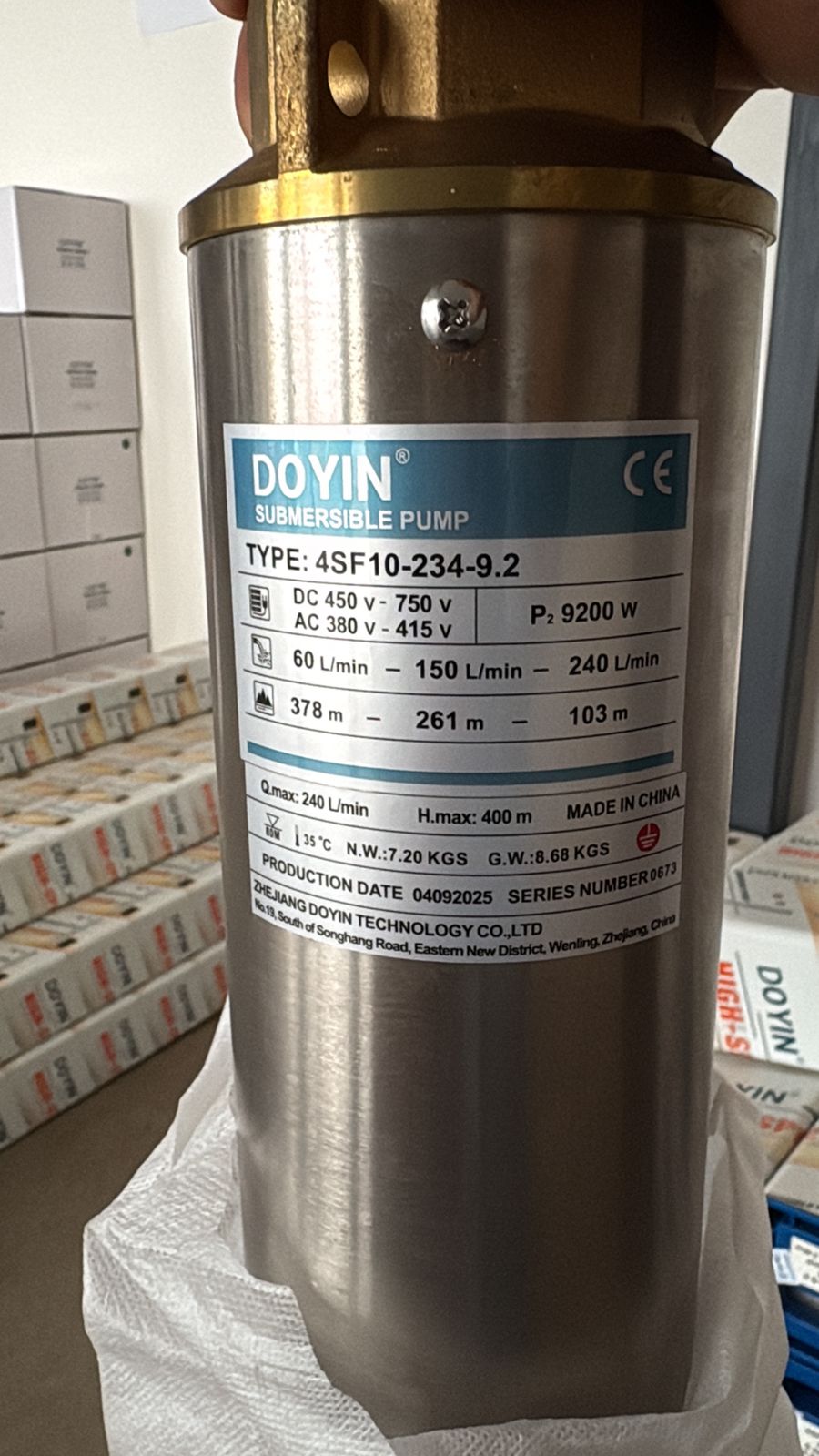

Technical Specifications
| Feature | Specification |
|---|---|
| Power | 9.2KW (approx. 12HP) |
| Maximum Head | 400 meters |
| Flow Rate | 14.4 m³ per hour |
| Voltage | AC 380V – 415V / DC solar |
| Controller | MPPT controller included |
| Motor Speed | Approx. 2900 RPM |
| Pump Type | Hybrid submersible pump |
| Material | Stainless steel |
| Outlet Size | 2 inch – 3 inch |
| Installation | Vertical |
| Operation | Solar, electricity, generator |
Applications of Hybrid Submersible Pump 9.2KW in Kenya
The hybrid submersible pump 9.2kw in kenya is suitable for deep borehole water extraction, large irrigation farms, livestock watering systems, estates and apartment complexes, schools and hospitals, hotels and lodges, industrial water supply, and community water projects. It is also widely used in large solar water pumping systems for off grid locations.
Benefits of Hybrid Submersible Pump 9.2KW in Kenya
Extreme Depth Capability
With a 400 meter head, this pump is designed for very deep boreholes in Kenya.
High Volume Water Output
Delivers 14,400 litres per hour, making it suitable for large scale irrigation and commercial use.
Continuous Operation
Hybrid system ensures uninterrupted water supply even when power conditions change.
Reduced Energy Costs
Solar operation significantly lowers electricity expenses.
Industrial Grade Performance
Designed for heavy duty use and long working hours.
Long Lifespan
Durable materials and advanced motor technology ensure extended service life.
Installation Guidelines
To install the hybrid submersible pump 9.2kw in kenya, lower the pump into the borehole to the correct depth and connect strong delivery pipes. Install the controller box in a dry and secure location, then connect solar panels and electrical supply. Ensure proper wiring and test the system to confirm automatic switching between power sources. A non return valve should be installed to prevent backflow. Professional installation is recommended.
Maintenance Tips
Check the controller regularly, inspect solar panel connections, ensure proper electrical wiring, avoid running the pump dry, clean the system if water contains sand, inspect pipes and joints, and service the pump when needed.
Why Choose Hybrid Submersible Pump 9.2KW in Kenya
The hybrid submersible pump 9.2kw in kenya is a high capacity solution for users who need maximum lifting power and high water output. It is designed for Kenyan conditions and provides reliable performance for agricultural, commercial, and industrial use. Its hybrid system allows users to benefit from solar energy while maintaining backup power from electricity, making it a cost effective and dependable long term investment.
Safety Guidelines
Switch off power before servicing, avoid handling electrical parts with wet hands, ensure proper earthing, install the controller in a safe location, and use the correct voltage supply.
Frequently Asked Questions (FAQ)
What is the price of hybrid submersible pump 9.2kw in kenya
Prices in Kenya typically range from KSh 130,000 to KSh 400,000 depending on specifications and system confirm
Can hybrid submersible pump 9.2kw in kenya run fully on solar
Yes, it can operate fully on solar power when connected to the correct solar system.
How deep can hybrid submersible pump 9.2kw in kenya pump water
It can pump water up to a maximum head of 400 meters.
What is the flow rate of hybrid submersible pump 9.2kw in kenya
It delivers about 14,400 litres per hour.
Is hybrid submersible pump 9.2kw in kenya suitable for large farms
Yes, it is ideal for large scale irrigation and agricultural use.
Does it require maintenance
It requires minimal maintenance but should be checked regularly for best performance.
